Chemical etching is a subtractive manufacturing process that removes selected metal through a controlled chemical reaction. A protective pattern covers the areas that must remain. A chemical solution called an etchant then reacts with the exposed metal and removes it.
In precision sheet-metal manufacturing, chemical etching often uses photoresist, ultraviolet light, and digital artwork to define the component pattern. This photo-defined form of the process is called photochemical etching, photo etching, or photochemical machining.
Chemical etching can produce holes, slots, outer profiles, channels, markings, and repeated patterns in thin metal. This guide explains its meaning, basic types, process, materials, benefits, uses, and limitations.
Key Takeaways
Chemical etching removes selected metal through a controlled chemical reaction.
Photochemical etching is a photo-patterned form of chemical etching used for precision sheet-metal parts.
The process can create through-holes, slots, profiles, channels, markings, and repeated patterns.
Common material families include stainless steel, copper alloys, nickel alloys, aluminum, titanium, and molybdenum.
Chemical etching avoids mechanical cutting force and a laser-type heat-affected zone.
Feature size, tolerance, edge profile, and depth depend on material, thickness, geometry, and inspection requirements.
What Is Chemical Etching?
Chemical etching is a method of shaping or modifying metal by removing selected material with an etchant. It is a subtractive process because it takes material away rather than adding or forming it.
The process begins with a metal sheet or surface. Areas that must remain are protected by a mask or resist. Areas that must be removed are left exposed. The etchant reacts with the exposed metal while the protected areas remain in place.
After the reaction reaches the required result, the component is rinsed and the protective layer is removed. The finished metal may contain an outside profile, holes, slots, channels, markings, or surface patterns.
Chemical etching is a broad process category. The way the protective pattern is created depends on the application. In precision metal component manufacturing, photoresist and UV-defined artwork are commonly used to transfer detailed patterns to sheet metal.
The Basic Principle of Selective Chemical Removal
The basic principle is selective protection. The etchant can only contact and remove the metal that the pattern leaves exposed.
The concept can be summarized in five stages:
Start with a metal sheet.
Protect the areas that must remain.
Expose the areas that must be removed.
Use a controlled etchant to dissolve the exposed metal.
Remove the protective layer and inspect the finished feature.
The quality of the result depends on more than the chemical reaction. Surface preparation, resist adhesion, pattern accuracy, etchant condition, material thickness, and process control all affect the final part.
Are Chemical Etching and Photochemical Etching the Same?
Chemical etching and photochemical etching are closely related, but the terms do not always have exactly the same scope.
Chemical etching is the broader idea of removing material through a controlled chemical reaction. Photochemical etching is a specific precision process that uses photoresist and light-defined artwork to control where the chemical removal occurs.
Photo etching and photochemical machining are common names for the same photo-defined manufacturing method. The abbreviation PCM is also used for photochemical machining.
| Term | Basic meaning | Use on TMNetch |
|---|---|---|
| Chemical etching | Broad term for controlled chemical material removal | Overall etching service category |
| Photochemical etching | Uses photoresist and UV-defined artwork to create precision patterns | Main process for detailed sheet-metal components |
| Photo etching | Common shorter name for photochemical etching | Used interchangeably with photochemical etching |
| Photochemical machining | Industrial name for the same photo-defined process | Technical synonym for PCE or PCM |
| Chemical milling | Related process that chemically reduces material in selected areas | Usually associated with controlled surface or depth removal |
In everyday manufacturing language, people may use chemical etching, photo etching, and photochemical machining interchangeably. The drawing and required result are more important than the label alone.
On TMNetch, chemical etching describes the wider service category. Photochemical etching refers more specifically to the photoresist and UV-based process used to produce detailed precision metal parts.
For a detailed explanation of photoresist, exposure, tolerances, undercut, design rules, and inspection, read the complete photochemical etching guide.

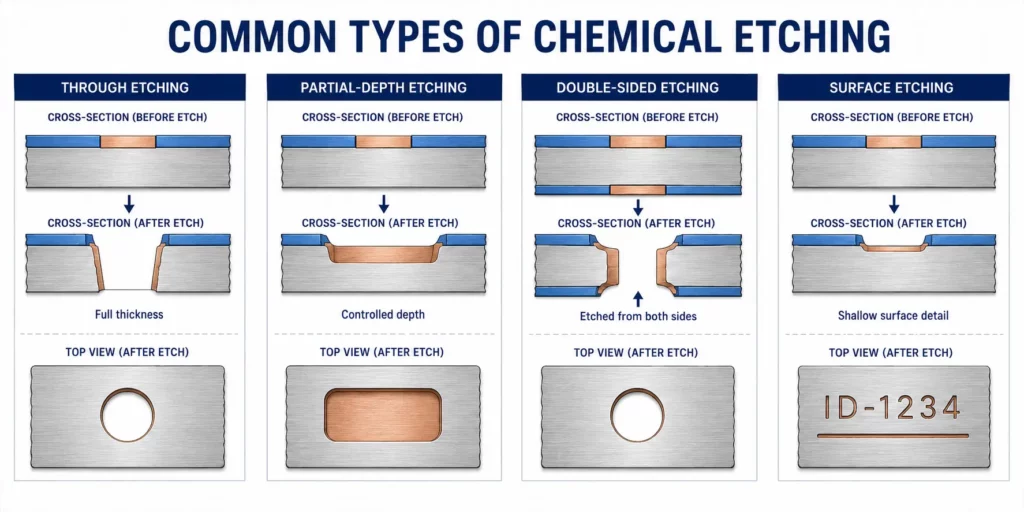

Common Types of Chemical Etching
Chemical etching can be grouped by how much material is removed and where the reaction occurs. The following categories explain the main results found in precision sheet-metal work.
Through Etching
Through etching removes metal through the full thickness of the sheet. It can create:
Through-holes
Slots
Mesh openings
Internal cutouts
Outer component profiles
The outside shape and internal openings can be included in the same photo-defined pattern. This is useful for parts with many repeated holes or detailed profiles.
Partial-Depth or Half Etching
Partial-depth etching removes only part of the sheet thickness. Metal remains beneath the etched area.
This method can create:
Shallow channels
Recessed areas
Bend or fold lines
Logos
Part numbers
Alignment marks
The term “half etching” does not always mean that exactly half of the material is removed. The drawing should identify the required depth or remaining thickness.
For more detail about channels, recesses, fold lines, and multiple depth levels, read What Is 3D Photo Chemical Etching?.
Double-Sided Etching
Double-sided etching applies patterns to both sides of a metal sheet. The patterns may align to create a through-feature or form different structures on the front and back.
This method can support through-holes, asymmetric surface features, and double-sided channel patterns. Front-to-back alignment becomes an important part of process planning.
Surface and Decorative Etching
Surface etching removes a shallow layer from selected areas. It can form text, logos, identification marks, decorative patterns, or controlled surface details.
The required appearance depends on the starting metal surface, pattern, depth, and any later polishing, plating, painting, or finishing operation.

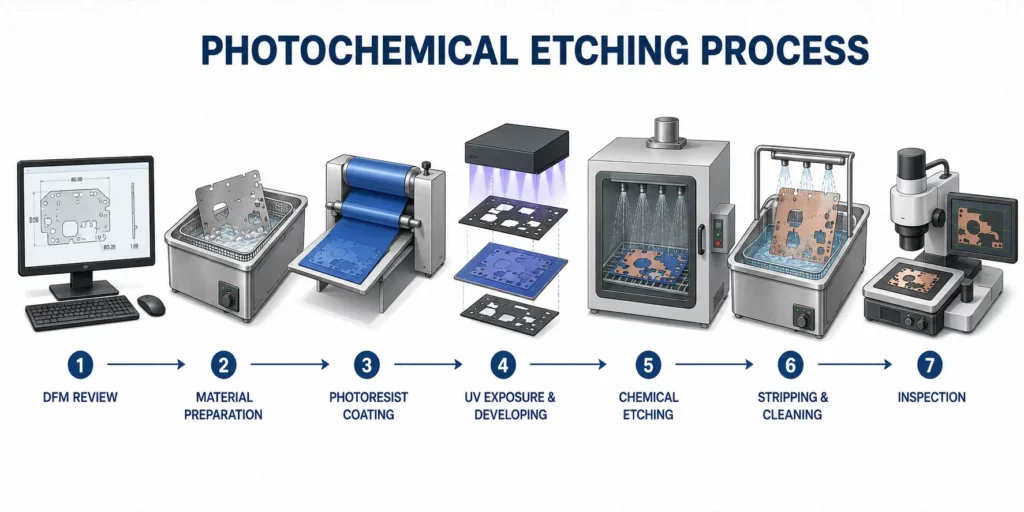

How Does the Chemical Etching Process Work?
Chemical etching is a subtractive manufacturing process that uses photoresist, UV imaging, and controlled chemical etching to selectively remove metal. A typical photochemical etching process follows these steps:
- Drawing and DFM review: The drawing is checked for material, thickness, critical dimensions, feature sizes, tolerances, and other manufacturability requirements.
- Metal selection and preparation: The required alloy and thickness are selected, then the metal surface is cleaned to remove oil, oxides, and contamination.
- Photoresist coating: A UV-sensitive photoresist is applied to the metal to protect the areas that must remain.
- UV exposure and developing: The component pattern is transferred onto the photoresist using UV light, and the resist is developed to expose the areas that need to be removed.
- Chemical etching: The sheet passes through controlled etching equipment, where the etchant removes the exposed metal while the protected areas remain intact.
- Stripping and cleaning: After etching, the remaining photoresist is removed and the finished parts are cleaned.
- Inspection and secondary processing: Critical dimensions and features are inspected, followed by processes such as plating, bending, polishing, or packaging when required.
Each stage can influence dimensional accuracy, edge profile, surface condition, and final part quality. For a more detailed explanation of the complete workflow, process variables, tolerances, and design requirements, read our complete guide to the photochemical etching process.
What Materials Can Be Chemically Etched?
Chemical etching can process a broad range of metals and alloys in sheet, strip, or foil form. However, different materials require different etchants and process conditions because alloy composition, thickness, temper, and surface condition all affect etching behavior.
Common chemically etched materials include:
- Stainless steel: Commonly used for filters, shims, encoder discs, shields, speaker grilles, and bipolar plates.
- Copper and copper alloys: Including copper, brass, phosphor bronze, beryllium copper, and nickel silver. These materials are widely used for electrical contacts, connectors, lead frames, springs, shielding, and thermal components.
- Aluminum: Suitable for lightweight grilles, shields, panels, and decorative components.
- Titanium: Used for bipolar plates, aerospace components, medical parts, and other applications requiring high strength and corrosion resistance.
- Nickel and nickel alloys: Common in electronic frames, precision screens, shielding, and high-temperature components.
- Specialty metals and alloys: Materials such as molybdenum and Inconel can also be chemically etched when the grade, thickness, surface condition, and part design are suitable.
Not every etchable metal is suitable for every feature size, thickness, or tolerance, so the exact material grade should be evaluated together with the part design. For a more detailed breakdown of material properties, grades, and typical applications, see our complete guide to photochemical etching materials.
Key Benefits of Chemical Etching
Chemical etching offers several useful characteristics for suitable sheet-metal designs. These benefits come from the non-contact method of material removal and the use of photo-defined artwork.
No Mechanical Shear Burrs
Punching and mechanical cutting can leave raised material at the cut edge. Because photochemical etching is a non-contact material-removal process, it can produce thin, complex metal features without the mechanical shear burrs and cutting stresses associated with many conventional machining processes.

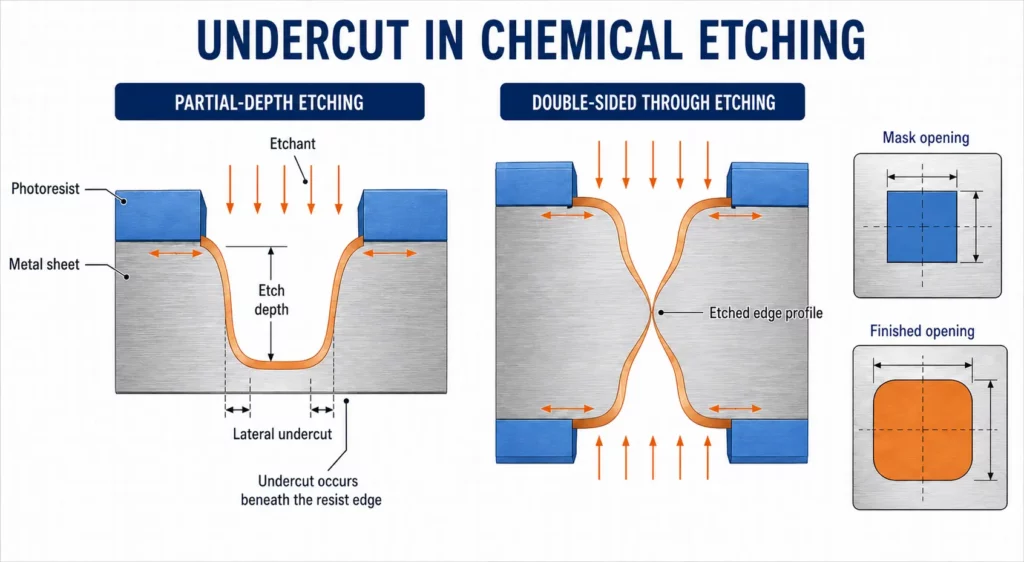

However, etched edges have their own profile because of undercut. They should not be described as identical to a machined vertical wall.
No Laser-Type Heat-Affected Zone
Laser cutting uses concentrated heat to create a profile. Chemical etching does not use a focused laser beam to remove the metal.
It therefore avoids a laser-type heat-affected zone. This can be useful for thin and delicate metal features where concentrated cutting heat is a concern.
Low Mechanical Cutting Stress
Chemical etching does not press a punch or cutting tool through the sheet. It avoids the direct cutting force associated with mechanical blanking or machining.
This makes the process useful for thin components, narrow webs, repeated openings, and detailed flat patterns that could be difficult to hold during mechanical cutting.
Complex Features Can Be Processed Together
Holes, slots, outer profiles, channels, and repeated patterns can be defined in the same artwork. The etchant acts on all exposed areas during the process.
Adding more openings does not require a separate cutting movement for every feature. Material use, feature density, etch time, process stages, and inspection still affect manufacturability and cost.
Digital Artwork Supports Design Changes
Photochemical etching uses photo-defined artwork rather than a hard stamping die to create the etched pattern. Engineers can revise the artwork when the component design changes.
This supports prototype development and repeat production where revisions may occur. A design change may still require new artwork, process review, samples, and inspection.
Several Parts Can Be Arranged on One Sheet
Multiple components can be nested across a metal sheet. The process can etch repeated designs together rather than machining every feature separately.
The number of parts per sheet depends on component size, spacing, material use, handling tabs, and process requirements. Sheet layout therefore remains an important production factor.

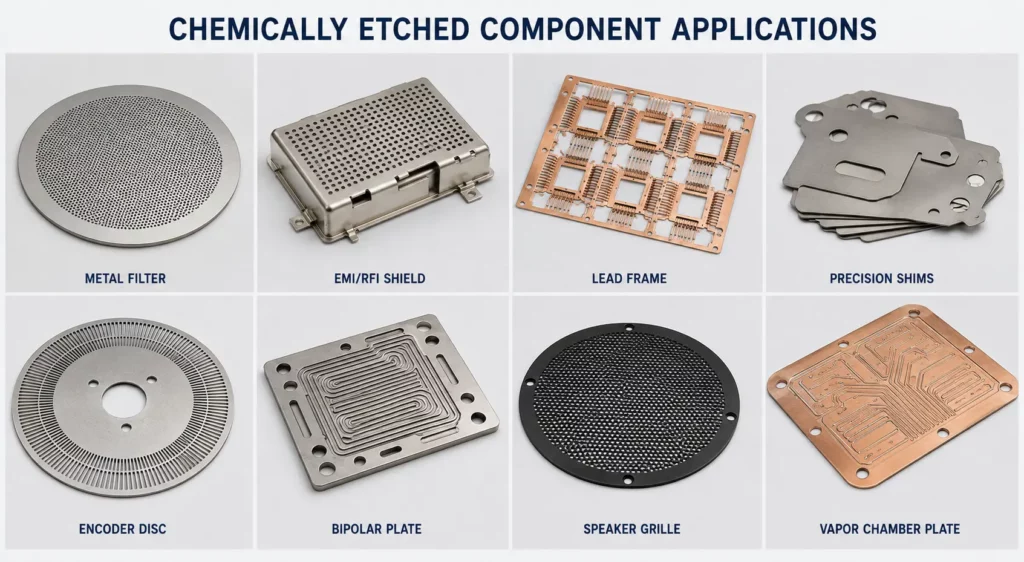

What Is Chemical Etching Used For?
Chemical etching is used for thin metal components that need detailed profiles, repeated openings, clean feature definition, or controlled surface depth. TMNetch applies the process to several product groups.
Metal Filters and Screens
Metal mesh filters and screens can contain repeated round, square, or custom openings. Chemical etching can form the aperture pattern and outside profile in the same process.
These parts may be used for filtering, separating, screening, ventilation, or flow control. The drawing should define the material, thickness, opening geometry, pitch, open area, and cleanliness requirements.
EMI/RFI Shielding Components
EMI/RFI shielding components can include ventilation holes, frames, covers, grounding features, markings, and bend lines.
Etching creates the flat metal geometry. Final shielding performance also depends on material, plating, grounding, assembly fit, and the electronic design.
Lead Frames and Electrical Contacts
Custom lead frames require repeated conductive paths and detailed geometry. Chemical etching can form fine patterns without a separate punch for each opening or lead shape.
The complete component may also require plating, forming, cleaning, flatness control, or other secondary operations. These requirements should be considered together with the etched design.
Shims, Spacers, and Washers
Precision shims, spacers, and washers are often thin, flat components with custom outside profiles, holes, slots, or repeated shapes.
Chemical etching can produce these geometries without mechanical blanking force. Material grade, thickness, flatness, surface condition, and dimensional requirements still need to match the final assembly.
Encoder Discs
Encoder discs can contain fine slots, openings, and position patterns arranged around a circular profile. The pattern must be consistent because it supports optical or motion-control functions.
Chemical etching can define the repeated pattern and outside shape in the same sheet process. Material, pattern geometry, concentricity, flatness, and surface finish remain important.
Bipolar Plates and Flow-Field Components
Bipolar plates can use etched ports, flow channels, and multi-depth patterns. Photo-defined artwork allows the flow-field geometry to be changed without creating a new hard forming die for the etched pattern.
The complete manufacturing plan may also include coating, cleaning, welding, bonding, forming, or inspection. These steps depend on the plate design and final system.
Speaker Grilles and Decorative Components
Custom speaker grilles can contain repeated acoustic openings, outer profiles, logos, and decorative patterns.
Etching supports detailed aperture layouts and visual patterns in thin metal. The final part may also use forming, coating, painting, polishing, or other finishing operations.
Thermal and Channel Components
Thin thermal components, vapor-chamber plates, and related parts may use etched internal channels, wick structures, openings, or alignment features.
The final thermal assembly often requires several manufacturing steps beyond etching. Joining, sealing, filling, surface preparation, and testing may all affect performance.
These examples appear across electronics, energy systems, aerospace, automotive, industrial equipment, optical systems, audio products, and decorative applications. The process is selected for the component geometry and material requirements, not simply for the industry name.
Basic Limitations of Chemical Etching
Chemical etching is highly effective for producing thin, complex metal parts, but the process still has several practical limitations that should be considered during design and manufacturing:
- Material thickness: Very thin materials may deform during processing, while thicker sheets can be more difficult to etch uniformly.
- Edge geometry: Chemical etching naturally produces some lateral etching, making perfectly vertical walls and extremely sharp edges difficult to achieve.
- Tolerance and precision: Etchant concentration, temperature, and process conditions can affect dimensional consistency, especially when very tight tolerances are required.
- Small or deep features: Narrow channels, deep grooves, and very small holes are more difficult to control because the etchant must reach and react uniformly with the exposed metal.
- Part geometry: The process is best suited to flat or relatively planar metal components rather than complex three-dimensional shapes.
- Process control: Temperature, chemical concentration, surface condition, and bubble formation must be carefully controlled to maintain consistent results.
These limitations do not necessarily make chemical etching unsuitable for precision parts, but they define the process’s practical design window. For a more detailed discussion of thickness, feature geometry, tolerance, process control, and other constraints, read our complete guide to the limitations of photochemical etching.
Chemical Etching at TMNetch
TMNetch runs dedicated automated photochemical etching lines — five production lines, each roughly 39 meters long — built to process material from 0.01mm to 2.0mm in thickness, with tolerances down to ±0.03mm achievable on suitable designs. Its published service range covers stainless steel, copper and copper alloys, nickel and nickel alloys, aluminum, titanium, molybdenum, and other suitable metals.
The process supports component groups such as metal filters, EMI/RFI shields, lead frames, shims, encoder discs, bipolar plates, speaker grilles, and thermal-channel parts. Suitable projects may also include secondary requirements such as plating, forming, polishing, cleaning, welding, or inspection.
No single tolerance, feature size, or etch depth applies to every drawing. TMNetch reviews the material, thickness, geometry, critical dimensions, depth, surface requirements, volume, and inspection needs before confirming manufacturability.
Readers who are still learning about the process can continue with the detailed photochemical etching and material guides. Teams with an active component drawing can use the service page to prepare a technical review.
FAQs About Chemical Etching
What is chemical etching?
Chemical etching is a subtractive process that removes selected metal through a controlled chemical reaction. A protective pattern covers the areas that must remain while an etchant removes the exposed areas.
What is the basic principle of chemical etching?
The basic principle is selective chemical removal. Protected metal remains in place, while exposed metal reacts with the etchant and is removed.
Is chemical etching the same as photochemical etching?
Chemical etching is the broader term. Photochemical etching is a photo-defined form of chemical etching that uses photoresist, UV exposure, and artwork to create precision metal patterns.
What is the difference between chemical etching and photo etching?
Photo etching describes chemical etching in which light-sensitive resist and a photo-defined pattern control the areas to be removed. In precision metal manufacturing, the terms are often used interchangeably.
What chemicals are used in metal etching?
The etchant depends on the metal and process conditions. Ferric chloride (FeCl₃) is one of the most commonly used industrial etchants in photochemical machining, while other metals and alloys may require different chemistries.
What metals can be chemically etched?
Common families include stainless steel, copper and copper alloys, nickel and nickel alloys, aluminum, titanium, and molybdenum. Suitability depends on the exact grade, thickness, surface, and design.
Does chemical etching produce burrs?
Chemical etching avoids the mechanical shear burrs created by some punching and cutting operations. The process still creates an etched edge profile influenced by undercut.
Conclusion
Chemical etching is a subtractive manufacturing process that uses controlled chemical reactions to remove selected metal. A protective pattern defines which areas remain and which areas are etched away.
Photochemical etching is the main photo-defined form used to manufacture detailed sheet-metal components. It combines photoresist, UV exposure, artwork, and controlled etching to create profiles, holes, slots, channels, markings, and repeated patterns.
The process avoids mechanical cutting force and laser-type heat-affected zones. It also supports complex artwork and design changes without a hard die for the etched pattern. However, it remains mainly a sheet-metal process, and its feature size, edge profile, depth, and tolerance depend on the specific design.
To learn more about materials, tolerances, design rules, and process limits, continue with TMNetch’s detailed photochemical etching resources. If you already have a component drawing and need manufacturing support, contact TMNetch for a technical review.
