Titanium Etching
What is titanium etching?
Titanium etching, a subtractive process, selectively dissolves metal using an oxidizing reagent. This method allows for the rapid and precise etching of intricate titanium components without compromising the metal's chemical or mechanical properties.
Renowned for its strength, lightweight, and high-temperature performance, titanium presents challenges in chemical etching due to its rapid formation of a protective oxidized coating when exposed to air. However, innovative techniques such as Advanced Chemical Etching's process have overcome these obstacles, enabling the production of finely etched titanium parts with exceptional accuracy.
The etching process involves applying a design onto a titanium surface using photoresist, a light-sensitive material that forms a pattern. Areas not covered by the photoresist are then etched away using a combination of hydrofluoric acid and other chemicals. This method ensures high-quality, stable, and repeatable results, regardless of the size or thickness of the titanium sheet.
In conclusion, titanium etching, exemplified by TMN Etch's innovative processes, offers a versatile solution for manufacturing intricate components while preserving the integrity of the metal. Our company's pioneering techniques, including the process, have positioned TMN Etch as an industry leader in providing high-quality, precise, and reliable titanium etching solutions. With TMN Etch, you can trust in our expertise to meet your exacting standards and bring your designs to life with precision and performance.
What’s the features of titanium material?
Titanium etching, exemplified by TMN Etch's innovative processes, offers a versatile solution for manufacturing intricate components while preserving the integrity of the metal. However, the conventional industry-standard process of titanium etching faces drawbacks for large-volume production. TMN Etch's unique titanium etching process overcomes these challenges.
Some of the benefits of our unique titanium etching process include:
High strength-to-weight ratio: Titanium is strong as steel but only about 60% of the weight, ideal for lightweight applications.
Corrosion resistance: Titanium can handle conditions up to 700°C, making it suitable for corrosive environments like seawater.
High melting point: Titanium's melting point of 1,668°C makes it useful in high-temperature applications.
Biocompatibility: Titanium is non-toxic, non-magnetic, and non-allergenic, making it popular for medical implants.
Thermal stability: Titanium can withstand high temperatures without losing strength, ideal for aerospace and automotive applications.
Excellent ductility: Titanium can be easily formed into various shapes, useful for diverse manufacturing needs.
These properties make titanium an ideal material for various industries, and with TMN Etch's expertise, we deliver precise and reliable titanium etching solutions tailored to your standards.
Common titanium chemical etching materials
| Titanium Material | Description |
|---|---|
| CP Grade 1 | Commercially Pure Titanium Grade 1 |
| CP Grade 2 | Commercially Pure Titanium Grade 2 |
| CP Grade 3 | Commercially Pure Titanium Grade 3 |
| CP Grade 4 | Commercially Pure Titanium Grade 4 |
| CP Grade 5 | Commercially Pure Titanium Grade 5 |
| CP Grade 6A-3 | Commercially Pure Titanium Grade 6A-3 |
| Nitinol | Nickel-Titanium Alloy |
| Pure Titanium | Unalloyed Titanium |
These materials can be photochemically etched, but the etching process and parameters must be carefully selected based on the specific properties of each alloy to achieve desired results.
What's the applications of titanium ?
Medical: Titanium finds extensive use in medical applications, including dental implants, spinal implants, joint replacements, pacemaker cases, and surgical instruments.
Military: Titanium is utilized in the manufacturing of spare parts for weapons due to its strength and durability.
Aerospace: Titanium plays a crucial role in aerospace engineering, being used in aircraft components and aerospace parts for its lightweight properties and high strength-to-weight ratio.
Consumer Products: Titanium is incorporated into various consumer products such as eyeglasses, jewelry, and watches due to its corrosion resistance and aesthetic appeal.
Sports Equipment: Titanium is employed in sports equipment manufacturing, contributing to the production of golf-related goods, bicycle frames, and tennis rackets owing to its strength and lightweight characteristics.
Automotive: In the automotive industry, titanium is utilized in valves, connecting rods, and exhaust systems due to its heat resistance and strength-to-weight ratio.
Electronics: Titanium is used in electronics for its compatibility with circuit boards, integrated circuits, and microelectronic components, offering corrosion resistance and durability.
Precision Machining: Titanium is favored in precision machining for producing precision parts, molds, and die-cuts, owing to its high strength and machinability.
What titanium etching related products has TMN factory produced ?

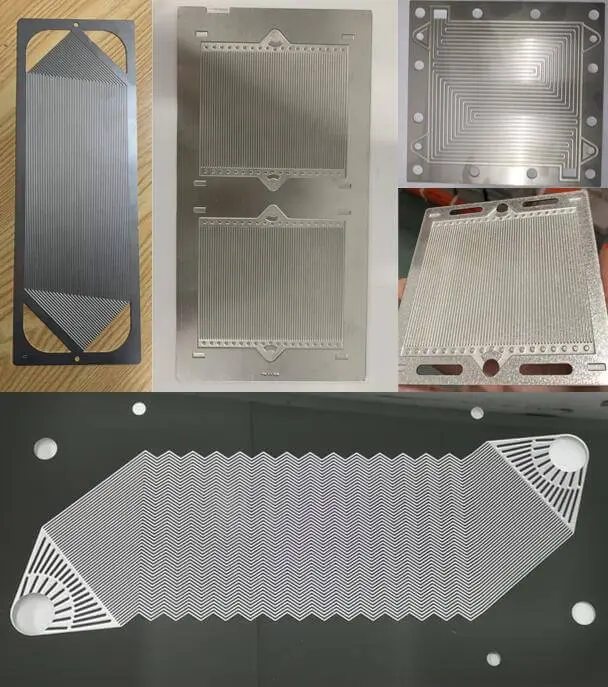

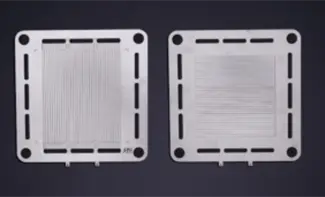

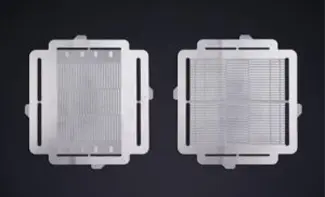

Fuel Cell Bipolar Plates: Our fuel cell bipolar plates are designed to accommodate various sizes and functions of fuel cells, including Proton Exchange Membrane (PCM), Alkaline Fuel Cells (AFC), Fuel Cell Electric Vehicles (FCEV), and more.

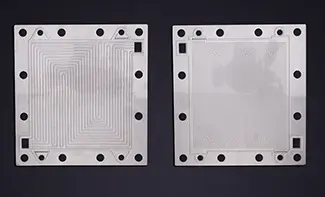

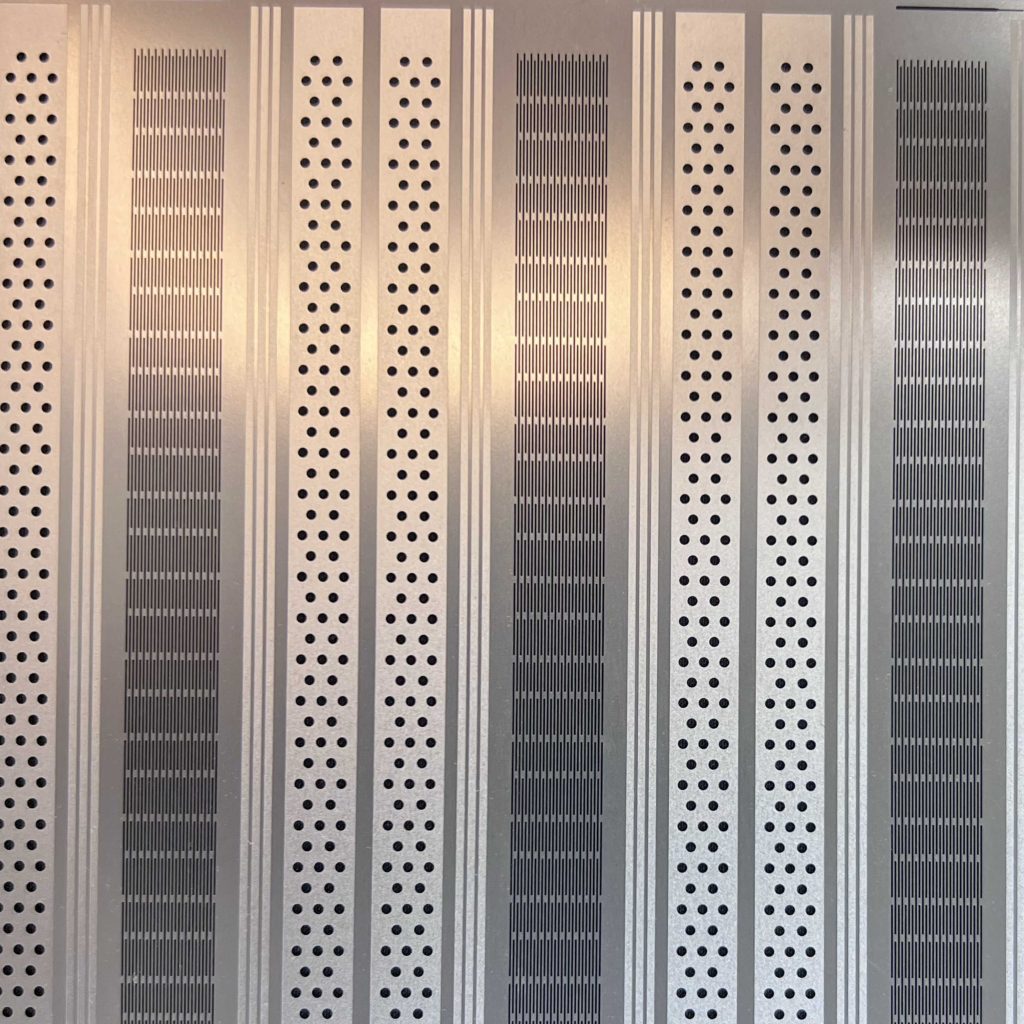

Bipolar Flow Field Plates: Featuring diverse geometrical configurations of channels, grooves, and crossovers, our bipolar flow field plates are tailored to meet specific performance requirements.
Custom Precision Parts: We specialize in the production of precision parts customized for various industries and applications, ensuring exacting standards and optimal functionality.
What’s the titanium etching ability?
Production Capacity: TMN operates 5 etching production lines, including 2 fully automated lines equipped with etching machines measuring 39 meters in length and 1.5 meters in width. Currently, our monthly production capacity stands at 4500 square meters.
Material Thickness: Our titanium etching process accommodates materials ranging from 0.05mm to 2.5mm in thickness.
Inspection Equipment: Quality assurance is ensured through the use of 2D Vision Inspection Equipment, which generates both First Article Inspection (FAI) and Outgoing Quality Control (OQC) reports.
Tolerance: We maintain tight tolerances, typically within +/- 0.05mm. For specialized products, tolerances can be further refined to +/- 0.03mm.
Partners: TMN serves as a trusted supplier of bipolar plates and flow field plates to leading fuel cell manufacturers, including Ballard, Bloom Energy, Fusion Fuel, FuelCell Energy, Cummins, SFC Energy, Elcogen, BYD, and others.
Customized Solutions: For tailored titanium etching solutions, kindly provide us with your Non-Disclosure Agreement (NDA) for signing. Following that, share your designs in DXF/DWG/PDF format, and we'll promptly provide feedback.
What is the purpose of etching?
The purpose of etching is to enhance the contrast on metal surfaces after metallographic grinding and polishing procedures. Etching is typically achieved through chemical or electrolytic processes. By selectively removing material from the surface, etching helps visualize the microstructure or macrostructure of the metal, aiding in analysis and inspection.
What is the best etchant for titanium?
Traditionally, Hydrofluoric Acid (HF) stands out as the preferred etchant for chemically etching titanium due to its effectiveness in removing the titanium oxide layer, a crucial step in the process. HF's unique ability to dissolve this layer enables precise and controlled etching, revealing the underlying microstructure or macrostructure of the titanium surface.
This technique is widely favored in various industries, including aerospace and medical, where the visualization of microstructural details is essential for quality control and analysis purposes.
Additionally, HF-based etchants are renowned for their versatility and effectiveness across different titanium alloys and thicknesses.
