The clean energy movement requires PEM electrolyzers to generate hydrogen through water electrolysis, which has created waves in the market. Advanced kitchen gadgets perform water-splitting functions to create hydrogen gas and oxygen gas. These devices offer high efficiency combined with compactness and precise operations for efficient green hydrogen production and establish themselves as fundamental components of renewable energy systems.
Which mechanisms create the futuristic devices? The production process of these machines begins with raw material preparation, leading to the final assembly of their systems.
Raw Materials Preparation
Stainless Steel 316L: Nitriding for Durability
The production of electrochemical reactors starts with Stainless Steel 316L, which serves as a base material because of its resistance to corrosion alongside its high strength properties. But it doesn’t stop there. The sheets accept nitriding heat treatment, which entails nitrogen surface diffusion to enhance their wear resistance and surface toughness.
Titanium Grades: Role in Electrochemical Stability
The selection of Titanium Grade 1 and Grade 2 material depends on their lightweight properties as well as their strong resistance to electrolytic corrosion. Almost pure Grade 1 titanium, along with its soft quality, suits electrochemical operation,s yet Grade 2 provides the best combination of shapeability and tensile strength characteristics.

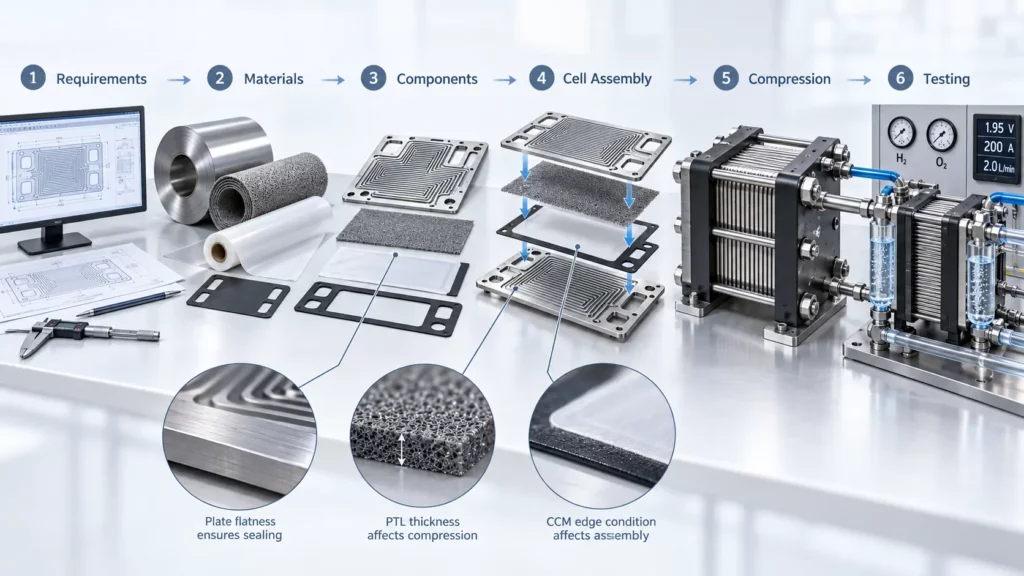

The PEM Electrolyzer core production process within its framework
Precision starts during the cutting process, which determines material dimensions.
The materials undergo precise cuts that follow the CAD drawings. The smallest measurement error at this step can expand into performance problems throughout the production process.

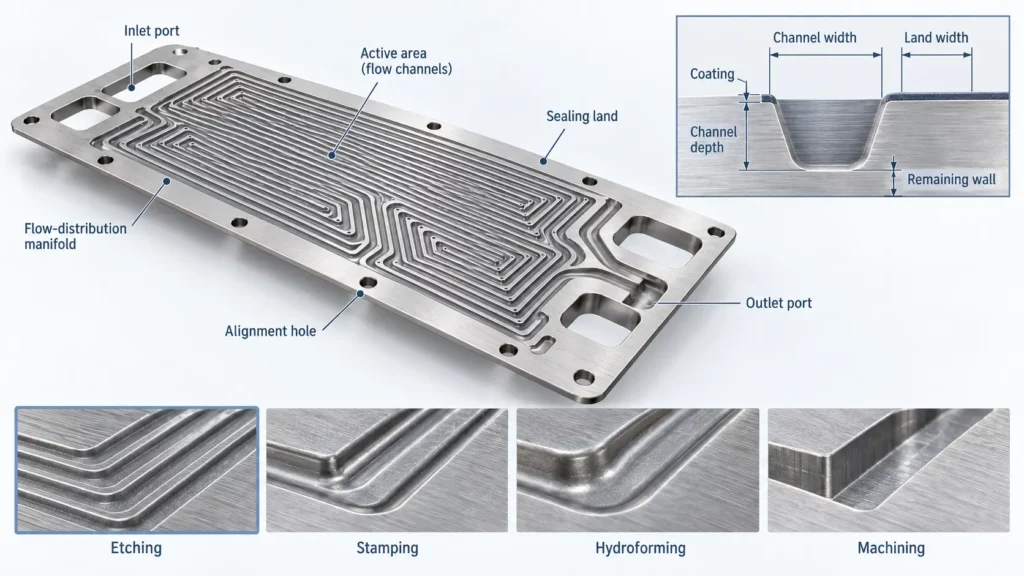

Stamping Process: Shaping the Future
The stamping machine within the press system casts the materials into finished plates and custom parts. The production process utilizes cutting tools identical to cookie cutters, though they work using steel and titanium parts.
Surface Cleaning: Prepping for Perfection
Hair-like dir,t along with oil residues and other foreign materials get eliminated through comprehensive cleaning procedures, which creates the best conditions for future steps.
Plasma Surface Treatment: Enhancing Material Properties
A plasma method operates on the cleaned surfaces. An advanced microscopic material modification through this process elevates surface energy to improve coating attachment and enhances electrochemical functionality.
Final Electrolyzer Assembly
All assembly occurs as a precise procedure where the fabricated and treated components create an integrated full electrolyzer stack by connecting MEA rings to frame plates and seals.

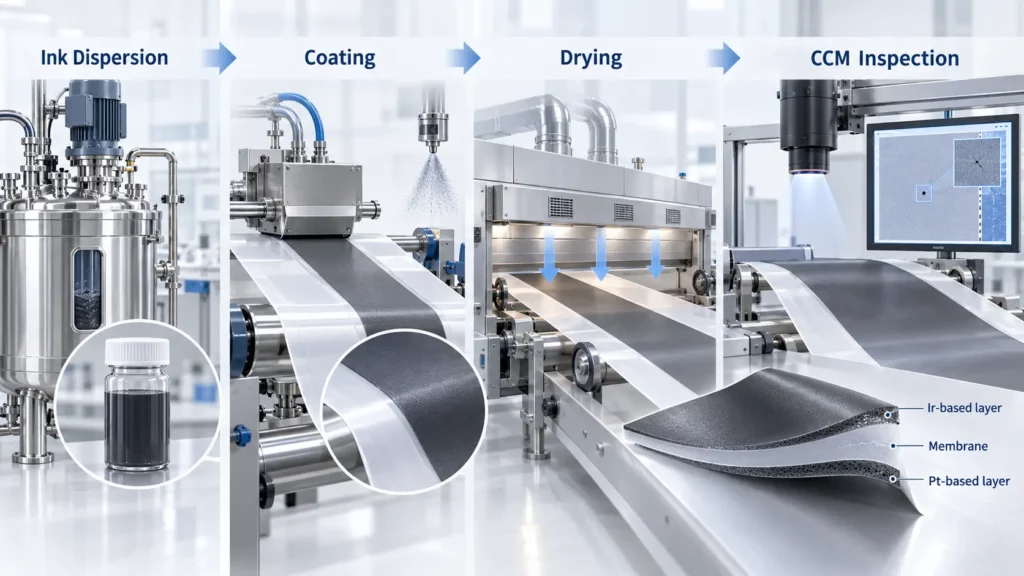

Membrane Electrode Assembly (MEA) Manufacturing
The PEM electrolyzer operates through the water-separating process that takes place within the MEA membrane. It’s built with surgical precision.
Cathode Construction
PEM Membrane with Platinum Catalyst
The PEM at the cathode receives a protective layer followed by the application of platinum-based catalyst slurry.
Slurry Coating and Curing
After precise coating with slurry by appropriate equipment, the solution dries to create a permanent placement for the catalyst.
Anode Construction
Base Membrane and Catalyst Slurry
All as a catalyst slurry on a base membrane, making use of iridium or ruthenium compounds for construction.
Coating, Drying, and Solidifying
After coating and drying the anode, the curing process maintains both the durability and distributes the catalyst across the layer properly.
The integration process of the cathode with the anode produces a united MEA platform.
The final step? A single MEA sheet emerges from hot-pressing the cathode and anode layers into one through the CCM (Catalyst-Coated Membrane) process.

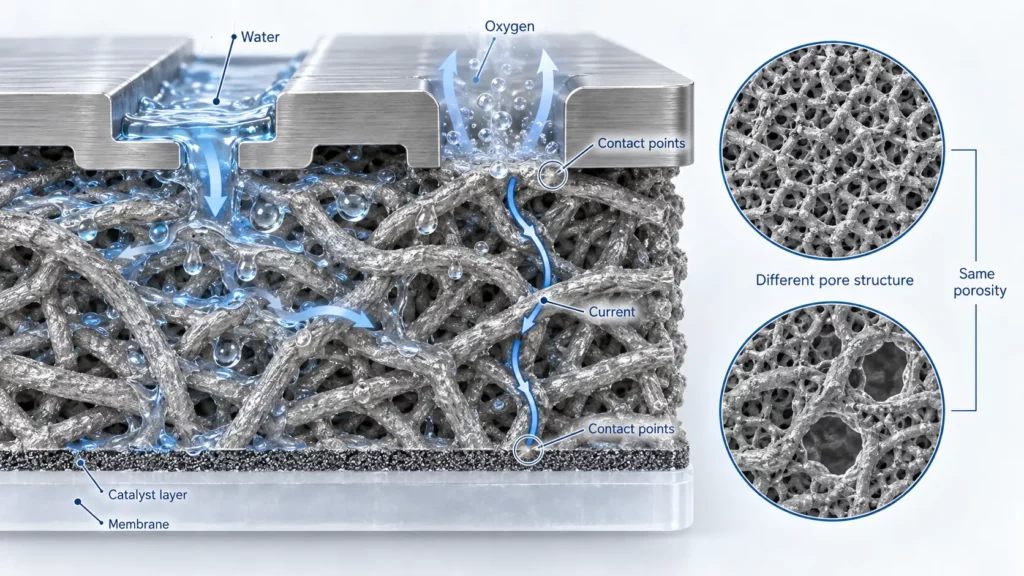

GDL Layer Formation via Powder Metallurgy
Metal Powders Used
Engineering selects copper together with stainless steel and molybdenum ultrafine particles because of their excellent conductivity combined with strength properties.
Mixing and Compacting
The powders receive precise blending followed by compacting into specific density and shape patterns.
Sintering into Felt
A sintering procedure at high temperatures combines the particles to create the porous metal felt, which develops into the Gas Diffusion Layer (GDL).

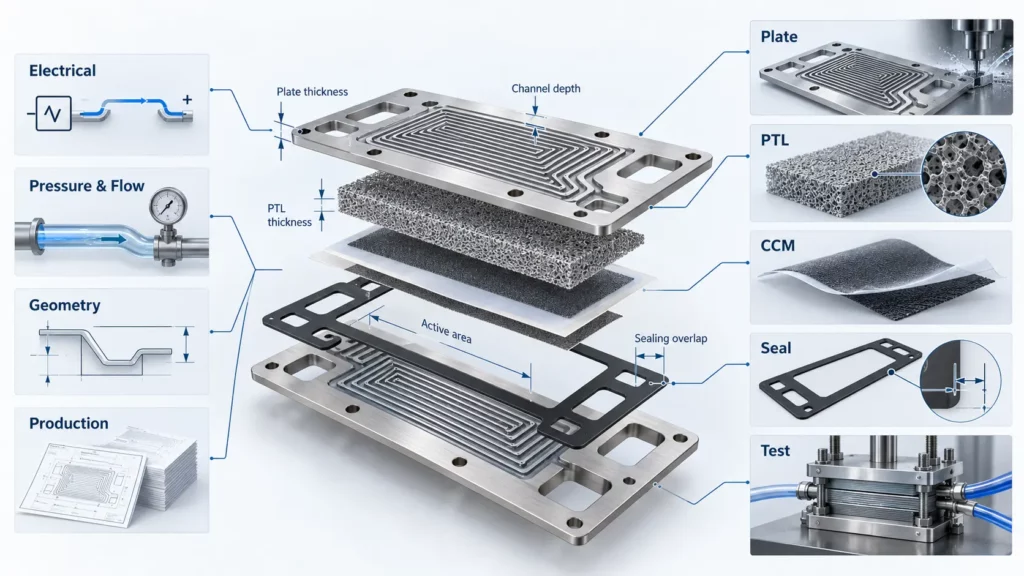

Structural Components of PEM Fuel Cell
PEM fuel cells consist of the following main parts:
Cathode Plate
The substance maintains the shape of the material while allowing electrons to travel through its structure.
Anode Plate
The electrode function acts as a negative terminal to drive the hydrogen oxidation process.
Frame
The structure provides support to all components while managing their geometrical layout.
MEA Cell
The core section contains the electrochemical reaction.
Seals
The perimeter devices guarantee both gas containment and appropriate system pressure regulation.
Porous Ti GD
The electrodes receive balanced gas distribution while water and gas transportation occur easily.
BOP – Balance of Plant Systems
No PEM electrolyzer operates alone. The PEM electrolyzer requires numerous operational systems, which constitute the Balance of Plant (BOP).
Power Supply System
The electrical system features DC voltage and current sensors together with power modules as well as controllers that regulate the power flow to the electrolyzer.
Deionized Water Loop
Water must be pure. All system components include deionizers and oxygen separators as well as circulation pumps and valves for maintaining clean, regulated flow conditions.
Hydrogen Production & Drying System
Measures separate the produced hydrogen before proceeding with drying operations. The combination of valves together with flow meters and drying devices produces uncontaminated dry hydrogen as the final output.
Cooling and Drying Unit
PEM systems generate heat. Plate heat exchanger, along with pumps alongside thermostats, operate in a cooling loop to provide the best temperature during drying subprocesses, which also rely on components to reduce moisture content.
Conclusion
The production process of PEM electrolyzers requires precise integration of scientific knowledge and engineering expertise, and material technology proficiency. Manufacturing PEM electrolyzers involves selecting appropriate metals for MEAs preparation while assembling electrolyzers with BOP system integration in a demanding production process. The result? The sustainable future depends on clean hydrogen fuel as its vital power source.
