Medical chemical etching uses patterned masking and controlled chemical dissolution to make thin metal components for medical devices. It is useful for dense openings, delicate profiles and designs that need repeated revisions. Its value depends on whether the finished component meets the application’s dimensional, surface and quality requirements.
Consider a hypothetical diagnostic screen. Its holes may meet the drawing, yet the screen may bend during assembly or retain unacceptable contamination. Making the pattern successfully resolves only part of the engineering problem.
Evaluating medical component chemical etching therefore means connecting three decisions: what geometry to manufacture, what condition the finished part needs, and how to verify both. This guide explains that connection across applications, materials and production. For manufacturing support, see TMNetch’s chemical etching services.
Key Takeaways
- Etching works well when thin material, complex patterns and flexible tooling match the design.
- Thickness, openings, webs and edge profiles must be reviewed together.
- Acceptance should cover the finished component, including secondary processing, cleanliness and inspection.
What Is Medical Chemical Etching?

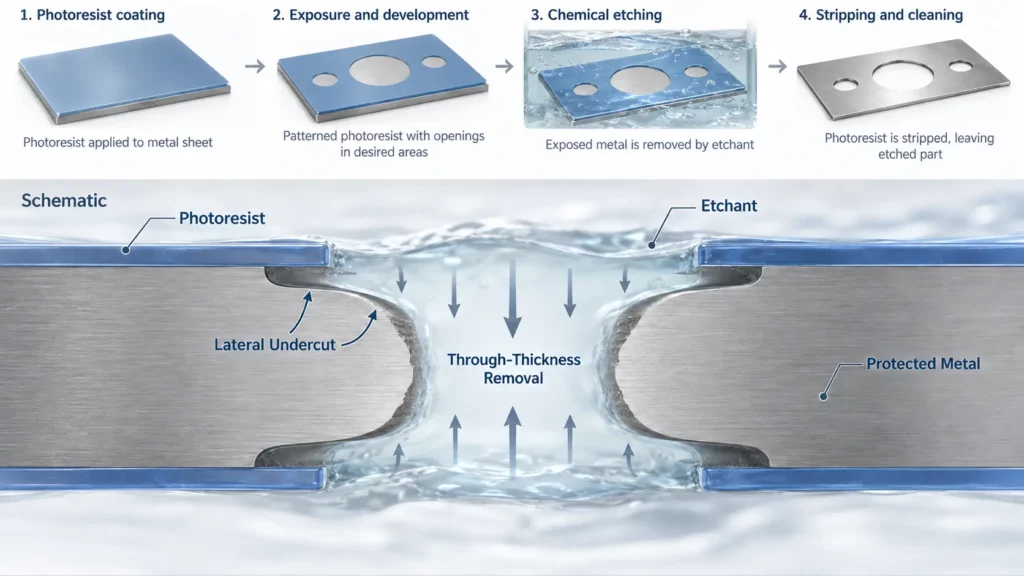

Photochemical etching, also called photochemical machining, transfers a pattern onto metal through a light-sensitive coating called photoresist. The manufacturer cleans the sheet, applies the coating, exposes it through a phototool and develops the pattern. Etchant then dissolves exposed metal while protected areas remain.
After etching, the manufacturer removes the resist, cleans the components and performs the agreed inspections. Depending on the design, separation, forming, polishing or plating may follow.
Why the Mechanism Matters
Medical device chemical etching avoids the punching forces used in stamping and the concentrated cutting heat used by lasers. That makes it attractive for delicate sheet features. A phototool also allows several openings and profiles to be processed across a sheet together.
The same mechanism creates a constraint: etchant removes metal laterally as well as through thickness. This undercut influences opening dimensions and sidewall shape. Thin material helps with fine features, but the component must still withstand handling and service loads.
These advantages and limitations belong in the same design review. A complex pattern is valuable only if the remaining metal performs its function.
When to Use Chemical Etching—and When to Choose Another Process
Start with the requirement that is hardest to satisfy. For a thin screen, that may be closely spaced openings. For a structural part, it may be stiffness or a deep pocket. For a surgical blade, it may be the final cutting edge.
| Process | Useful starting point | What to investigate |
|---|---|---|
| Photochemical etching | Thin components with dense openings or delicate profiles | Undercut, remaining webs and handling strength |
| Laser cutting | Sheet profiles and flexible design changes | Cut quality, thermal effects and finishing for the selected laser |
| Stamping | Stable designs with substantial production volume | Die cost, burrs, tool wear and revision costs |
| CNC machining | Thick components, pockets and three-dimensional geometry | Tool access, workholding and machining time |
Compare the complete manufacturing route. An inexpensive blank may become costly after sharpening, cleaning or inspection. Conversely, an etched blank followed by controlled forming may satisfy a requirement that flat etching alone cannot meet.
Medical Components Commonly Made by Photochemical Etching
Chemical Etching for Surgical Cutting Tools

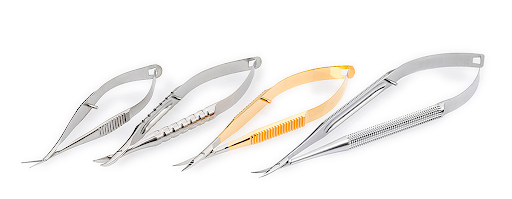

Chemically etched surgical cutting tools can begin as blade blanks, saw profiles or thin components with teeth and perforations. Etching establishes suitable geometry; sharpening or grinding may establish the working edge.

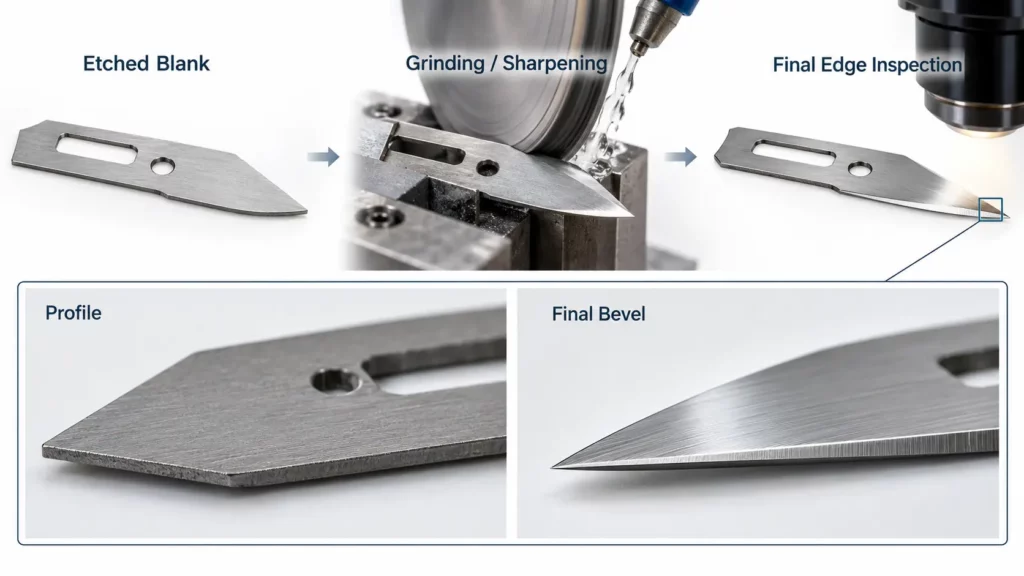

For an orthopedic cutting tool, specify the profile and final bevel separately. If subsequent grinding changes a critical dimension, inspect it after grinding. This connects the inspection stage to the feature that actually controls performance.
Etched Medical Instruments and Thin Precision Parts
Medical instrument etching can support flat springs, inserts, shims and instrument plates. Review where the component locates, flexes or transfers force within the assembly.
A spring profile, for example, needs the correct alloy condition and forming history as well as an accurate outline. Needle-related flat parts may be candidates, but hollow needles and tubular features require a separate process assessment.
Etched Medical Meshes, Screens and Filters

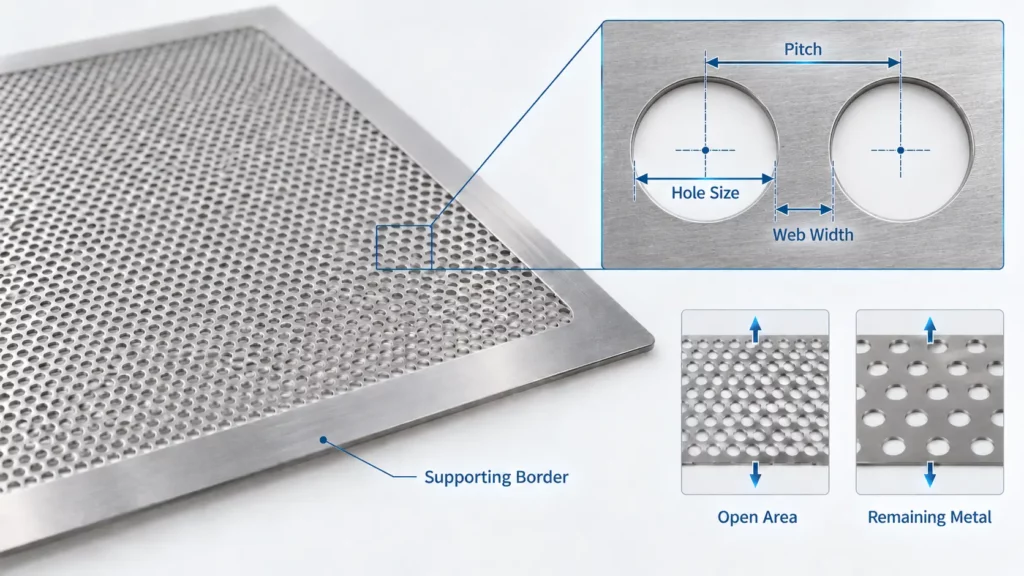

Etched medical meshes offer defined opening patterns for suitable filtration, protection and flow-control applications. Hole size, pitch and web width determine both the open area and the supporting structure.
Increasing open area can reduce the metal available to resist handling loads. Review the pattern against pressure, assembly and cleaning requirements before choosing the smallest possible webs. TMNetch’s metal mesh filters and screens page covers related component options.
Medical Electronics and Electrical Terminals
Photo-etched medical electrical terminals can include contact profiles and thin connector elements. Lead frames and shielding blanks are other candidates.
The outline is only one input to electrical performance. Alloy temper, plating and forming affect contact behavior. Define these operations together so that an accepted etched blank can become an accepted electrical component.
Diagnostic and Medical Imaging Components
Etched medical imaging parts can include apertures, grids and detector-related thin components. Diagnostic equipment may also use sensor apertures and micro-hole plates.

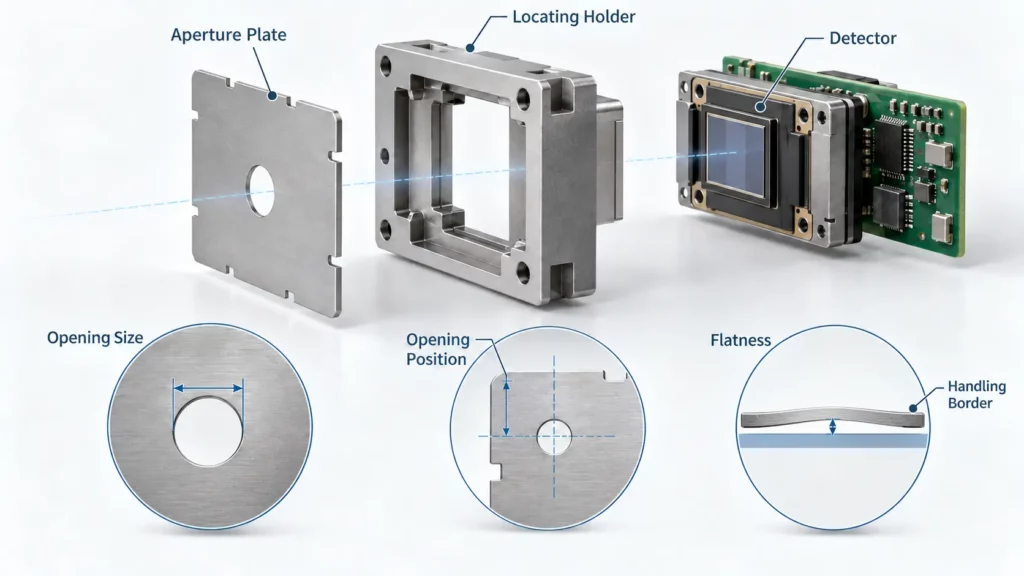

For an optical aperture, identify which opening and location dimensions control alignment. Then assess flatness, edge condition and coatings. A dimensionally correct opening can still be unsuitable if another feature interferes with the optical assembly.
Implant-Related and Orthopedic Components
“Medical implant etching” may describe manufacturing a thin sheet component or modifying an existing implant surface. These objectives require different process reviews.
Photochemical etching can be evaluated for suitable sheet profiles. Surface etching of a three-dimensional implant may instead target texture or surface chemistry. For surgical implant and spinal-surgery components, establish the intended outcome before comparing suppliers or capabilities.
Materials for Medical Chemical Etching
Specify the exact alloy, grade, thickness and condition before reviewing feasibility. Material choice affects processing, but it also reflects the device’s mechanical and surface requirements.
316L Stainless Steel
316L stainless steel is a candidate for corrosion-resistant medical components. Define the starting surface and any cleaning or passivation requirements. Etching an accurate profile does not establish the required final surface condition.
Titanium and Titanium Alloys
For titanium etching, Grade 2 titanium and Ti-6Al-4V need alloy-specific review. Ask whether the proposed geometry and finishing sequence have been demonstrated for that grade. Capability for one titanium alloy should not be transferred automatically to another.
Nitinol
Nitinol is a nickel-titanium alloy used for shape-memory and superelastic behavior. Nitinol photo etching must be evaluated alongside material condition and downstream processing. Verify the functional properties required by the component after the relevant operations.
Cobalt-Chromium Alloys
Cobalt-chromium, or Co-Cr, covers multiple alloy compositions and conditions. For Co-Cr chemical etching, provide the exact specification and critical geometry. Application properties such as wear resistance do not establish manufacturing feasibility.
Tungsten and Other Specialty Metals
Tungsten photochemical etching requires demonstrated chemistry and process capability. For specialty metals, request evidence relevant to the proposed grade, thickness and geometry before committing to production.
Medical Chemical Etching Design Guidelines
Design for manufacturability (DFM) turns a drawing into a set of manufacturing and inspection decisions. Three reviews are particularly useful.
Review Thickness, Openings and Webs Together
A web is the metal bridge between openings. Review photochemical etching design limits by comparing the smallest hole, narrowest slot and thinnest web with sheet thickness. These relationships influence how demanding the pattern is to etch.
As an illustrative comparison, the same opening in a thicker sheet generally presents a more demanding etching problem. Reducing thickness may help manufacture it, but can reduce stiffness. Widening the opening or changing spacing may be preferable if the component’s function allows it.
Choose changes by checking their effect on the assembly, rather than optimizing one manufacturing dimension in isolation.
Allocate Tolerances by Function
Identify the dimensions that control alignment, sealing or assembly. Give them the limits the function requires. Avoid applying the tightest tolerance to every feature by default.
For a hypothetical sensor aperture, opening position may be critical while the outer handling border permits more variation. This distinction focuses process control and inspection on the features that matter.
Agree on datums—the references used for measurement—and the inspection method before sampling. A tolerance has limited value if supplier and customer measure it differently.
Define Edge, Surface and Separation Requirements

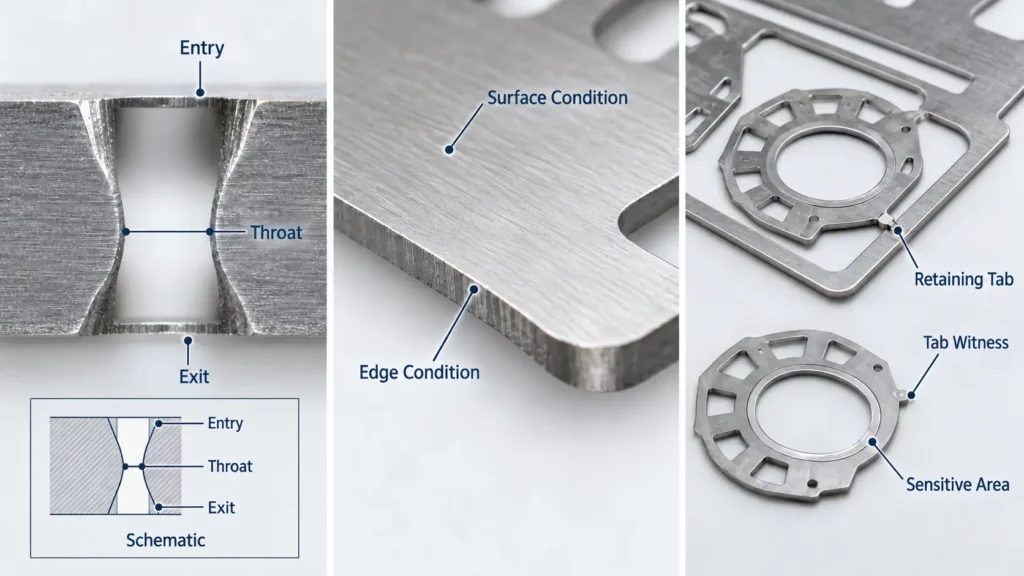

Because etched openings can vary through thickness, specify where a critical opening dimension is measured. Include sidewall requirements when they affect assembly or flow.
Also define roughness, cleaning, polishing, passivation or plating where needed. If retaining tabs hold parts in a production sheet, specify permitted locations and removal marks. Keep them away from sealing surfaces, contact areas and other sensitive features.
Quality, Inspection and Medical-Device Requirements
Build Inspection Around Failure Modes
Ask how an otherwise acceptable-looking component could fail. A screen may have blocked openings, a bent border or an unacceptable removal mark. An aperture may meet its opening size but fail its location requirement.
Use these possibilities to define dimensional, visual and surface checks. Agree on material identification, drawing revisions, lot records and inspection reports. Packaging should preserve the condition established at final inspection.
ISO 13485 and Supplier Controls
Medical-device manufacturers may manage suppliers within an ISO 13485 quality system. In the United States, the FDA’s Quality Management System Regulation took effect on February 2, 2026, incorporating ISO 13485:2016 by reference.
Confirm the supplier’s certification scope and the project’s documentation requirements. Certification and component acceptance answer different questions; both need appropriate evidence.
ISO 10993 and Biological Safety
ISO 10993 addresses biological evaluation within risk management. Evaluation depends on the finished device, body contact, contact duration and relevant manufacturing history.
The FDA’s biocompatibility framework is not a universal testing checklist. A familiar alloy does not resolve questions about process residues or finishing. Identify the required evidence for the intended application before approving production.
From Prototype to Volume Production
Use prototypes to answer the uncertainties identified during DFM. Check demanding features, assembly fit, handling and the condition after secondary operations. A sample that fits once is useful evidence, but does not establish lot-to-lot consistency.
Before scaling, agree on the drawing revision, process sequence, acceptance criteria, inspection sampling and packaging. Evaluate whether production lots reproduce the relevant sample results. Changes to material or finishing should trigger the appropriate review.
Phototooling makes design changes accessible. A clear verification plan makes those changes informative.
Working with TMNetch: Prepare an RFQ That Supports DFM
TMNetch provides custom photochemical etching for thin metal components. Its medical component manufacturing page introduces related services.
For a request for quotation (RFQ), provide:
- CAD and dimensioned PDF files with revision identification.
- Alloy, grade, temper and thickness.
- Critical dimensions, datums, tolerances and edge requirements.
- Cleaning, finishing and secondary processing specifications.
- Prototype quantity, production volume and delivery requirements.
- Inspection, traceability, documentation and packaging requirements.
Explain the component’s function and patient-contact conditions. Request confirmation of project-specific capability so that the quotation reflects the complete manufacturing route.
FAQs About Medical Chemical Etching
What Does Etching Mean in Medical Manufacturing?
It means selectively removing material through controlled processing. Here, it describes photochemical manufacturing of thin metal components.
What Medical Components Can Be Photochemically Etched?
Candidates include screens, apertures, contacts, shims, springs and instrument blanks. Material, geometry and finished-part requirements determine suitability.
Can Chemical Etching Make Surgical Cutting Tools?
It can produce suitable blanks, profiles and perforations. Final sharpening, grinding and edge inspection may follow.
Can Chemical Etching Be Used for Medical Implants?
Suitable sheet components may be evaluated. Implant surface treatment requires a separate assessment of its objective and process.
What Materials Can Be Chemically Etched?
Stainless steel and titanium are candidates. Nitinol, Co-Cr and specialty metals require confirmation of alloy-specific capability.
What Tolerances Can Medical Chemical Etching Achieve?
Review alloy, thickness, geometry and measurement method together. Agree on achievable limits for the specific drawing.
Is Photochemical Etching Suitable for Small Batches?
Flexible phototooling can suit prototypes and small batches. Compare photochemical etching cost, including material, setup, finishing and inspection.
Choosing the Right Process for Your Medical Component
Begin with the hardest functional requirement. Select a manufacturing route that can meet it, then verify the finished component at the relevant stages.
