What is Nickel Etching?
Nickel etching is a precision, non-contact process that selectively removes material to form intricate patterns from thin metal sheets. By eliminating mechanical stress, it preserves nickel’s corrosion resistance, thermal stability, ferromagnetic behavior, and protective oxide layer—properties often compromised by mechanical processing.
Whether you need EMI/RFI shielding, high-temperature filters, or precision grids as thin as 0.03mm, nickel etching delivers consistent performance across demanding applications.
Our Nickel Etching Capabilities
We deliver the performance that corrosive environments and high-temperature applications demand. Every nickel component is etched to exact tolerances, remains stress-free, and preserves the material’s properties.
Thickness Range
We etch nickel from 0.03 mm to 1.0 mm, enabling ultra-thin EMI/RFI shields, precision filter meshes, and heat-resistant components for extreme environments.
Wide Alloy Selection
We process pure nickel (Nickel 200/201, 270) and specialized alloys including Inconel, Monel, Hastelloy, Invar, and Kovar.
Ferromagnetic Precision
We maintain nickel's magnetic properties during etching, critical for electromagnetic shielding applications where material integrity directly impacts performance.
High-Temperature Stability
Our process preserves nickel's thermal characteristics for components operating up to 1455°C, including heat exchangers, fuel cell plates, and aerospace applications.
Complex Features

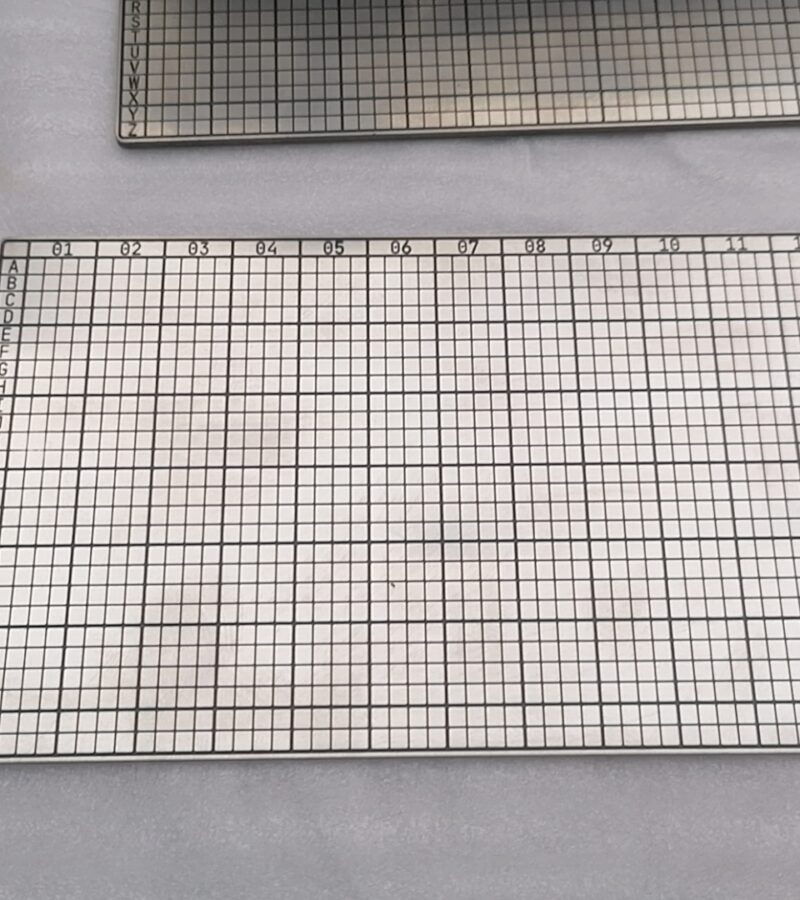

With tolerances to ±0.025 mm, we produce fine channels, micro-grids, intricate perforations, and detailed patterns.
Repeatability at Scale
Our process delivers high-volume production of nickel components with exceptional consistency.
Nickel grades suitable for chemical etching
Commercially Pure Nickel Grades:
| Nickel Grade | Description | Typical Applications |
|---|---|---|
| Nickel 200/201 | Wrought nickel with excellent corrosion resistance. | Chemical processing, electronics. |
| Nickel 270 | Electroformed nickel with high purity and low stress. | Precision components. |
| Nickel 270+ | Enhanced version with higher purity and improved properties. | High precision applications. |
Commercially Pure Nickel Grades:
| Nickel Grade | Description | Typical Applications |
|---|---|---|
| Nickel 400 | Nickel-copper alloy with excellent resistance. | Marine, chemical processing. |
| Nickel 400LS | Low-sulfur version with improved corrosion resistance. | Marine applications, chemical processing. |
| Nickel 686 | Nickel-chromium-molybdenum alloy with excellent resistance. | Chemical processing, pollution control. |
| Nickel 825 | Nickel-iron-chromium alloy with added elements for resistance. | Sulfuric acid production, chemical processing. |
Commercially Pure Nickel Grades:
| Nickel Grade | Description | Typical Applications |
|---|---|---|
| Nickel 625 | Nickel-chromium alloy with high strength and corrosion resist. | Chemical processing, aerospace. |
| Nickel 718 | Precipitation-hardening alloy with high strength. | Aerospace, automotive. |
| Nickel 625LCF | Modified version with enhanced fatigue resistance. | Turbine blades. |
| Hastelloy B-3 | Nickel-molybdenum alloy with exceptional acid resistance. | Chemical reactors, acid storage. |
Commercially Pure Nickel Grades:
| Nickel Grade | Description | Typical Applications |
|---|---|---|
| Invar | Nickel-iron alloy known for low thermal expansion. | Precision instruments, aerospace. |
| Kovar | Nickel-cobalt-iron alloy with similar thermal expansion to glass. | Electronics packaging, aerospace. |
| Nickel 330 | Nickel-chromium-iron alloy with resistance to oxidation. | High-temperature applications, chemical processing. |
| Nickel 600 | Nickel-chromium alloy with good oxidation resistance. | Heat exchangers, furnace components. |
Our nickel etching capabilities range from pure nickel to standard and specialty nickel alloys, such as Inconel nickel alloys, renowned for their excellent heat resistance and corrosion resistance. For more detailed material information, please leave us a message/send a message.

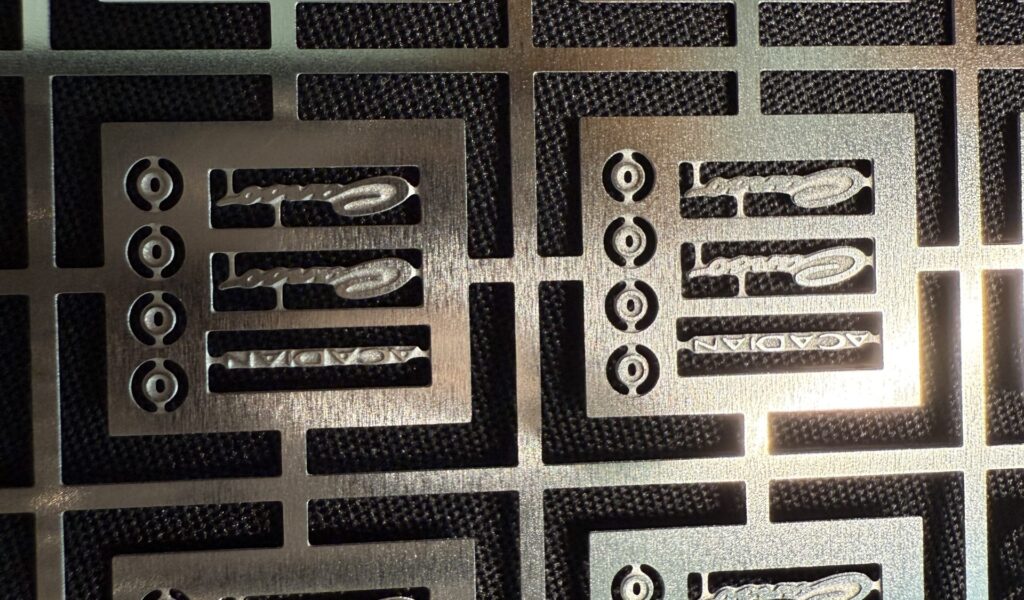

Nickel Etched Components We Supply
- Shims and spacers
- Mesh and fine screens for filtration
- EMI and RF shielding parts
- Springs and flexible contacts
- Diaphragms
- Lead frames and connectors
- Custom etched parts
Nickel Etched Components We Supply
We have an exact and standardized procedure to guarantee the utmost quality output of each project:
Shims and spacers
Mesh and fine screens for filtration
EMI and RF shielding parts
Springs and flexible contacts
Diaphragms
Lead frames and connectors
Custom etched parts
Benefits of Nickel Etching Process
Corrosion Resistance
Nickel naturally forms a protective oxide layer, so etched components maintain durability in harsh environments without additional coatings.
Surface Finish
Nickel etching produces smooth, precise edges while maintaining the metal’s inherent hardness and surface quality
Strength at Thin Gauges
Even ultra-thin sheets (down to 0.03 mm) remain structurally strong and dimensionally stable, unlike many other metals.
Dimensional Stability
Nickel’s low thermal expansion (especially in alloys like Invar) ensures etched components hold their shape in extreme temperature cycles.
Our Nickel Etching Process
With our controlled, automated process, we transform your designs into precise components:
Material Selection
Choose a suitable material from our inventory of pure nickel and specialized alloys.
Cleaning & Preparation
Any surface impurities or contaminants are removed from the material to ensure uniform etching across the entire substrate.
Photoresist Application
A light-sensitive coating is applied to both sides of the nickel sheet.
Imaging
Your design is transformed onto the photoresist using UV light.
Chemical Etching
Then the material is immersed in etchant solutions that selectively remove exposed nickel areas.
Stripping and Finishing
Photoresist coating is removed, and dimensions are verified through CMM inspection.
Why Choose TMNetch for Nickel Etching?
By collaborating with TMNetch, you receive guidance from prototype design through final inspection, ensuring a seamless process:
Preservation of Material Properties
Our chemical etching process avoids mechanical stress, which ensures that nickel’s properties and structural integrity are not compromised.
Proven Industry Experience
We supply nickel components to manufacturers across aerospace, defense, electronics, and industrial sectors worldwide.
Production Capabilities
With five automated etching lines operating continuously, we can deliver up to 1,800 m² per day with consistent results.
Performance in Extreme Conditions
We maintain dimensional tolerances up to ±0.025 mm for components designed to operate at temperatures as high as 1,455°C.
