Have you ever wondered how manufacturers make very thin metal parts with sharp edges and no bending? The secret is not fancy cutting tools. It is chemical etching. Unlike laser cutting or stamping, this process uses controlled chemicals to slowly remove metal and create smooth, perfect parts every time.
If you work in aerospace, electronics, or medical fields, you may have heard about chemical etching. It is often used to make very precise parts where accuracy is important. In this guide, we will look at the different types of chemical etching materials and how the process works. Let’s learn more about the science behind it.
What Is Chemical Etching?
Chemical etching, also called photo-chemical machining or chemical milling, is a process that removes unwanted metal using a chemical reaction. Instead of using a blade or laser, an acid or ferric solution dissolves certain parts of the material.
Here’s how it works: only the exposed areas of the metal react with the chemical. The rest is covered with a thin, protective film. When done right, the result is a part with clean edges, sharp details, and no mechanical stress.
So why use chemical etching instead of other methods?
- It does not bend or damage thin metals.
- It makes complex designs that punching cannot.
- It removes burrs and heat marks.
- It is easy to repeat and good for large production.
In short, chemical etching gives engineers freedom in design. There are no limits from tools, molds, or mechanical pressure.
Common Metals Used in Chemical Etching
Most metals can be chemically etched, but some are easier to work with than others. Because of this, many industries focus on metals that have special features and are better for etching. These unique features make sure that the process meets the needs of different markets.
Chemical Etching Stainless Steel
Stainless steel is one of the most common metals used in chemical etching. It comes in many grades and is very versatile. This makes it popular in many industries such as aerospace, electronics, medical, and precision engineering. These fields benefit from stainless steel because it produces parts that are smooth, burr-free, and without stress.
Stainless steel etching usually involves corrosive chemicals to etch complex shapes from sheets of stainless-steel metal. It is a highly accurate processing method that can produce high accuracy level of complexity with no mechanical stress placed on the material.
In a typical stainless steel etching process, a corrosive chemical solution is used to create complex shapes and fine details from thin stainless-steel sheets. This method gives very accurate and complex designs without putting pressure on the material. The final etched parts have smooth edges, high precision, and even quality. This makes them great for important uses where reliability and performance matter.
Chemical EtchingTitanium
Titanium is renowned in chemical etching materials for its lightweight properties, high strength, and outstanding high-temperature performance. When it comes to the titanium etching process, it typically involves using an oxidizing agent to selectively dissolve the exposed areas of the metal. As a result, chemically etched titanium can be used to produce a large number of complex and high-precision components efficiently.
The main challenge with titanium chemical etching lies in the metal’s strong chemical reactivity at high temperatures and the protective oxide layer that forms when titanium is exposed to air. This natural oxidation can significantly shorten tool life and make conventional etching processes ineffective for titanium and its alloys.
To overcome these challenges, specialists have developed advanced equipment and optimized process chemistry—often utilizing hydrofluoric acid (HF) as the etchant—to ensure consistent, high-quality results. This refined approach enables the production of etched titanium parts with precision and surface quality comparable to components made from more conventional metals.
Aluminum Chemical Etching
Aluminum chemical etching materials not only share titanium’s impressive strength-to-weight ratio and corrosion resistance but also feature a higher fatigue limit, making them ideal for aerospace and automotive applications.
In addition to these strengths, aluminum’s malleability, ductility, and excellent electrical conductivity make it a highly versatile metal. However, these same properties can also present challenges in traditional manufacturing.
For instance, aluminum’s flexibility can lead to wear and material pickup during machining, and it tends to harden during punching. Its high reflectivity makes it difficult to cut with lasers, and when subjected to photo-etching, aluminum’s tendency to release heat may result in rough or uneven edges.
Through the chemical etching process, engineers use photoresist coatings and precise chemical solutions to remove metal from selected areas. This method maintains the original material properties and produces burr-free, stress-free parts with clean outlines and no heat-affected zones. Because of this, aluminum chemical etching provides a cost-effective, highly accurate, and efficient manufacturing alternative to traditional sheet-metal fabrication methods such as stamping, laser cutting, or water-jet cutting.
Chemical Etching Brass
Brass is a mix of copper and zinc. It is easy to work with, conducts electricity well, and looks nice. It also resists rust, which makes it good for both decorative and practical uses.
Brass chemical etching is used to make nameplates, signs, connectors, and electronic parts. It can create fine designs and thin parts that are hard or costly to make with machines. Brass also has a smooth, shiny surface that looks great when finished.
Cutting or stamping brass by machine can cause burrs or bent edges because it is soft. Chemical etching solves this problem. It uses a photoresist coating and special chemicals to remove only the uncovered metal. This makes clean, stress-free parts that match the design exactly.
For manufacturers, brass etching gives accurate results, low setup costs, and fast production. It is a smart choice for industries that need detailed, repeatable, and good-looking parts.
Chemical Etching Copper
Copper is one of the most common metals for chemical etching. It conducts heat and electricity very well. It is also soft and easy to form, which makes it great for small, precise parts in electronics and telecommunications.
In the copper etching process, chemicals like ferric chloride or cupric chloride remove the exposed metal. The photoresist layer keeps the rest protected. This helps create tiny circuits, battery contacts, heat sinks, and other electronic parts with high accuracy.
When copper is cut by machines, it can cause burrs, tool wear, or cracks. Laser cutting can also leave uneven edges because of the heat. Chemical etching avoids these problems and makes smooth, clean, and stress-free parts that keep their electrical quality.
Chemical etching is also fast and works well for large production runs. It does not need expensive molds or special tools. The process keeps the depth and size even across all parts, which helps them work well in electronics.
Etched copper parts are often used for connectors, circuits, and cooling systems. They give great performance, accuracy, and value for money.
How the Chemical Etching Process Works
The beauty of the chemical etching process is in its accuracy. Here is how it works, from a raw metal sheet to a finished component.
1. Material Preparation
Every good project starts with preparation. The metal sheet is cleaned to remove oil, dirt, and oxides. A clean surface helps the photoresist stick well and makes sure the etching stays even.
2. Photoresist Coating & Masking
Next, a light-sensitive coating called photoresist is added to both sides of the metal. TMNetch uses advanced systems to control the coating thickness. A mask, made from a digital file or film, shows the pattern that will be etched. Ultraviolet light hardens the exposed parts, and the unexposed parts are left to be removed later.

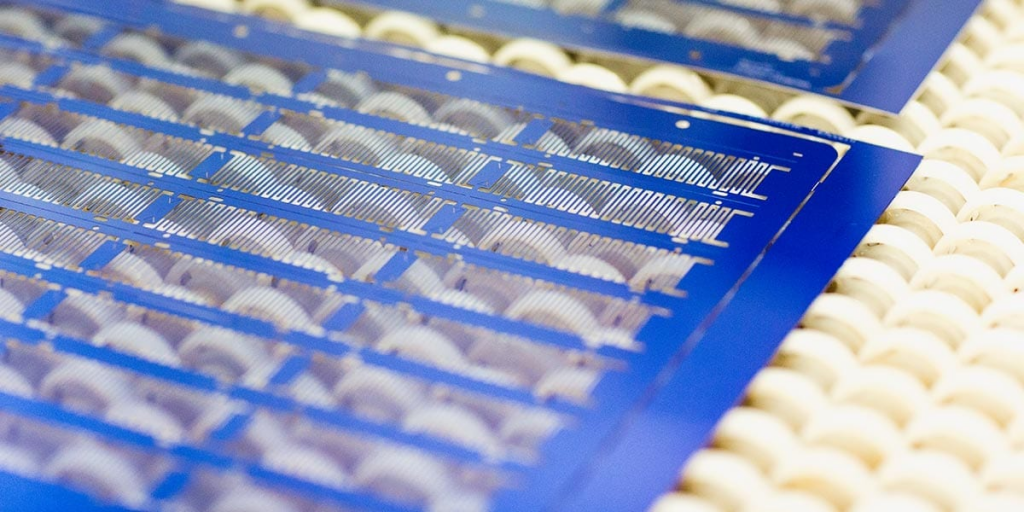

3. Developing & Etching
The unexposed photoresist is washed away, showing the bare metal underneath. Then the metal goes through the etching step. The chemical etchant removes the uncovered metal with great accuracy, forming fine shapes and patterns. This step is where chemical etching shows its true value.
4. Stripping & Inspection
After etching, the remaining photoresist is taken off, revealing the final design. Each piece is checked to make sure the thickness, size, and edges are correct. TMNetch carefully inspects every part to keep quality consistent from samples to large orders.
5. Finishing Options
The last step depends on the type of metal. Finishing can include plating, passivation, or anodizing. Passivation helps stainless steel or titanium resist corrosion. Anodizing makes aluminum harder and gives it a better look. TMNetch provides many finishing options so every part is ready to use.
Choosing the Right Material and Process
Picking the right metal and etching process is important to get the best mix of accuracy, cost, and performance. Each metal reacts differently during etching. Knowing how each factor affects the result helps you make better choices in manufacturing.
- Material thickness: Thin sheets (0.01–1.5 mm) work best for chemical etching. They help keep the depth even and the edges clean.
- Design complexity: Small or detailed shapes are easier to make with photoresist than with cutting tools.
- Functionality: Use copper or brass if you need good electrical conductivity. Use stainless steel or titanium if you need corrosion resistance.
- Environment: For high heat or corrosive conditions, titanium or stainless steel are better choices.
- Production goals: Etching saves tooling costs, so it is great for prototypes or small to medium production runs.
TMNetch’s engineers check each project carefully. We look at the alloy type and the right chemicals to make sure every part performs well and stays cost-effective.
TMNetch: Your Trusted Chemical Etching Manufacturer
When accuracy and reliability come together, TMNetch delivers. With decades of experience in chemical etching, TMNetch makes parts from stainless steel, titanium, aluminum, brass, and copper.
Why clients trust TMNetch:
- Full in-house control of every step in the etching process
- Skill in working with many types of metals and alloys
- Fast prototyping with no tooling cost
- ISO-certified production and quality checks
- Capacity to handle both small and large production runs
From aerospace brackets to tiny medical filters, TMNetch’s technology makes sure every part meets strict industry standards. When you need accuracy measured in microns, you need a partner with long experience who gets it right the first time.
Conclusion
Chemical etching is one of the most accurate and flexible ways to make metal parts. It works well for stainless steel, titanium, aluminum, brass, and copper. The process makes burr-free and stress-free parts with high precision, perfect for aerospace, electronics, and medical use.
As mentioned above, the success of etching lies in your partner’s experience and technical expertise. TMNetch offers professional chemical etching and other advanced etching services for a wide range of materials. With cutting-edge technology, TMNetch produces etched parts — including titanium components — with extremely tight tolerances and consistent quality.
If you want reliable, high-quality results, visit TMNetch‘s official website to learn more about its chemical etching process and see how true skill meets innovation.
