PVD Fixture: Precision Manufacturing and Applications

What are PVD fixtures?

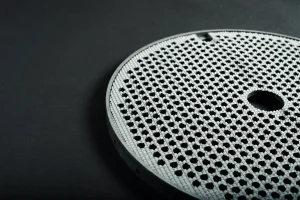

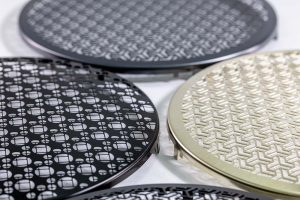

Physical Vapor Deposition (PVD) fixtures are essential in the PVD coating process, providing stability, precision, and accuracy during deposition. PVD fixtures assist the uniform application of coatings for complex parts, resulting in improved durability, wear resistance, and performance enhancement.

Given the strict tolerances and intricate designs required for industrial applications, PVD fixtures must be manufactured with extreme precision. Acquiring the essential performance and accuracy demands precise material selection with multiple etching workflows that focus on material dimensions.

Key Specifications of PVD Fixtures

Material : 304 stainless steel

Thickness Options : 0.3mm, 0.4mm, 0.5mm, 0.6mm

Complex Structural Design : Ensures stability and precision

Strict Tolerances : Guarantees accurate positioning

Multiple Etching Requirements : Enhances product accuracy

Key Manufacturing Processes of PVD Fixtures

1. Ink coating process: Precision control in PVD fixture production

The ink coating process determines how successful the etching operations will turn out. The proper regulation of ink thickness remains essential because it enables precise and stable results during the etching process .

The manufacturing staff needs to execute the material specifications that define exact ink thickness parameters according to various material thickness ranges. Various tests confirm these values, which have been thoroughly tested and verified. Deviation from the standard ink thickness requirements leads to the following three production effects:

• Universal structural instability occurs due to deviations in Boss sizes.
• Improper positioning of holes negatively affects assembly precision because of inaccuracies.
• The production efficiency faces adverse effects because of reduced yield metrics.

The precision of a fixture could suffer from improper hole alignment since any minute changes in ink concentration result in unpredictable etching depth that prevents accurate part assembly. The maintenance of precise production depends heavily on obtaining strict control of ink application.

2. Film Use and Inspection Specifications

The accuracy of a PVD fixture is heavily dependent on the use of high-quality photolithography films. These films provide:

• The imaging resolution needs to be high to get precise patterns with clear definitions.
• The material maintains excellent stability, which stops alignment shifts from occurring during the manufacturing process.
• The method enhances the uniformity of etching processes, which in turn results in higher production yield and fewer manufacturing defects.

A two-dimensional measuring instrument must be used by operators to perform a full inspection after alignment with film. The inspecting tool confirms whether the set tolerance range has been maintained. The detection of any deviations requires prompt action to stop:

• Misaligned patterns will cause accuracy problems in the final products.
• The manufacturing process results in defective fixtures through inconsistent characteristics of etched features.
• Manufacturers who use precise measuring tools in this stage eliminate errors effectively and sustain high-quality requirements across the entire production cycle.

3. Etching Process: The first-piece testing, followed by Mass production

Etching is one of the most crucial steps in PVD fixture manufacturing. The start of mass production requires carrying out a first-piece test to ensure the proper etching parameters.

A technician needs to prepare the etching solution (potion) exactly following a predefined formulation. The effectiveness of etching in the solution depends on its specific gravity measurement. Problems linked to incorrect solution density will lead to several unwanted effects, such as:

• Defective etching produces measurement imprecision, which affects the dimensions and tolerances of features.
• The product performance becomes affected when the material removal amounts exceed or fall short of optimal levels.
• Defects will appear as a result of reduced structural strength.



The placement order of workpieces must be consistent when they enter the etching machine. Some etching forces become inconsistent because of different fixture orientations that lead to the following circumstances:

• The dimensions of the seam, both length and width, can be modified within the fixture.
• Reduce overall precision and performance.
• Structural integrity shows variations when implemented for the etching process.
• Process inspections and standardized placement techniques help manufacturers reduce the manufacturing risks during production.

4. Multiple Etching Requirements for Complex Structures

Some PVD fixtures require multiple etching steps to achieve intricate designs and meet strict tolerances. This process involves:

• Distributing the etching process into multiple stages that remove material from different depths.
• Precise depth control features are processed using the half-etching technique.
• The process involves secondary alignment procedures to guarantee accurate results at every stage of etching.
• The completion of fine mesh structures in a fixture demands multiple passes of the etching process to reach the necessary detail level.
• The proper alignment of each etched layer needs to be maintained compared to prior layers to keep structural quality stable.

5. Final Inspection and Quality Control

The final inspection takes place after etching to confirm that every specification remains within the specified limits. Key quality control measures include:

• The usage of high-precision measuring instruments permits dimensional checks.
• Checks of surface quality evaluate for defects together with discrepancies.
• A durability test of fixtures under operational conditions is performed through fixture strength testing.
• By a rigorous inspection protocol, manufacturers can implement guarantee that PVD fixtures meet the highest standards of quality and performance.

Challenges in PVD Fixture Manufacturing and Solutions

1. Maintaining Precision in Complex Designs

PVD fixtures often feature highly intricate structures, requiring extremely tight tolerances. Performance degradation occurs when tiny errors appear in either material thickness or etching depth.

Solution:

• Utilize advanced photolithography techniques.
• Multiple-stage inspection procedures must be performed for accurate alignment verification.
• The service provides computer-programmed etching operations with enhanced consistency results.

2. Avoiding Over-etching and Under-etching

The incorrect settings for etching will either damage the material or prevent adequate pattern creation from happening.

Solution:

• Potion concentration, together with temperature, must be monitored precisely.
• Real-time adjustments should use automated monitoring systems for process control.
• Conduct first-piece validation before full-scale production.

3. Ensuring Film Stability and Accuracy

The pattern transfer process becomes inaccurate because of either film misalignment or deterioration.

Solution:

• The storage of films must occur under conditions that control environmental effects that cause warping.
• The use of strict handling protocols needs implementation to prevent product contamination.
• The setup process requires precise alignment instruments.

Conclusion

The production of PVD fixtures requires a high degree of precision, from ink coating and film alignment to etching and final inspection. Manufacturers can reach the highest accuracy standard alongside durability and functionality through proper management during every process step.

With advancements in photolithography, precision etching, and automated quality control, the future of PVD fixture manufacturing promises even greater innovation and efficiency. As industries continue to demand higher-quality coatings, the importance of well-designed PVD fixtures will only grow.
