Optical Encoder Disc: A Complete Guide for Precision Motion Control

Precision begins with a quality optical encoder disc in the automation, robotics, and motion control systems of today. This tiny yet essential device transforms physical movement into exact digital signals that dictate speed, position, and direction. Whether CNC machines or medical devices, it’s always a function of disc quality and pattern accuracy. Optical encoder discs for precision instruments give you consistent output, low drift, and repeatability, even in aggressive environments. These high-accuracy optical encoder disc suppliers, when produced via more advanced optical encoder disc manufacturing, such as the resolution and robustness needed for contemporary industrial and scientific applications, form the foundation elements of high-accuracy motion response systems.

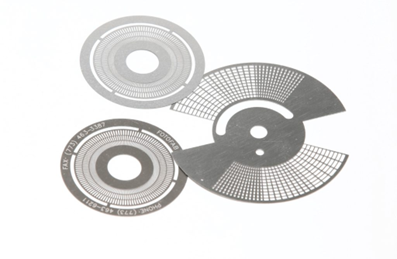

What Is an Optical Encoder Disc?

An optical encoder disc is a carefully structured circular disc that is used inside optical encoders for the measurement of either rotational or linear movement. It has transparent and opaque portions that pass by a single light source and sensors that produce digital signals. Based on these signals, the controller can determine position, velocity, and direction with high reliability. An optical encoder disc for precision instruments in advanced motion systems is created with ultra-fine patterns to provide accurate feedback. MFR features controlled optical encoder disc manufacturing, allowing the disc to maintain tight tolerances, stability, and consistency, which are critical for motion control applications requiring stable & high-resolution motion control capabilities.

Understanding Optical Encoder Disc Design and Specifications

How precisely the motion is detected and translated into signals is directly defined by the design of the optical encoder disc. Performance correlates with aspects such as pattern geometry, material choice, and thermal stability. The specifications have to be tightly controlled, as even minute deviations can lead to signal loss or error for demanding systems, particularly the optical encoder disc working principle explained. Design also accommodates high-temperature-resistant optical encoder disc requirements in high-stress environments without impacting accuracy.

Key Design and Specification Factors

1. Disc Diameter and Thickness: In an optical encoder disc system, resolution is affected by diameter, while the thickness determines the mechanical stability of the disc and mount.
2. Line Count and Resolution: The number of lines should be larger, because signal resolving power will be higher for an encoder disc very important for precision products like high-precision instruments of fine motion control.
3. Pattern Accuracy and Symmetry: Consistent distance and concentricity reduce signal jitter and increase the reliability of the encoder.
4. Material Selection: It is advantageous for glass to be used as a material having optical transparency, and for high-temperature-resistant optical encoder disc utensils, it is advantageous if metal is used.
5. Thermal Expansion Control: Low-expansion materials can be used to control distortion by maintaining the signal output level against heat.
6. Surface Finish and Coatings: High-temperature resistant optical encoder discs enhance the light intensity/contrast with anti-reflective coating or protective coatings.
7. Optical Transparency and Contrast: Well-defined border between transparent and opaque regions provides a clean signal output.
8. Mechanical Tolerance and Flatness: Tight tolerances also eliminate wobble and misalignment when a device spins at high rotation speeds.
9. Environmental Resistance: For a high-accuracy optical encoder disc supplier, designs may incorporate dust, oil, and vibration protection.
10. Compatibility with Sensor Systems: The optical encoder disc will not provide the best results unless it is compatible with the spacing of both the light source and the detector in the encoder.

Types of Optical Encoder Discs

These motion systems produce and hold position information differently and therefore have unique requirements for high-temperature-resistant optical encoder disc design. The disc type directly relates to accuracy, signal output, and application suitability of the encoder, especially in applications requiring dependable and repeatable motion feedback.

• Incremental Optical Encoder Disk: It provides pulse signals output on speed and relative position for use in many control systems

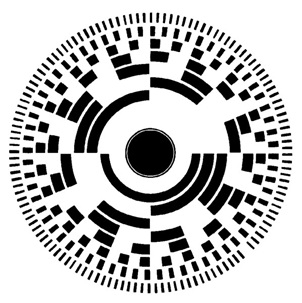

• Absolute Optical Encoder Disc: Features special coded patterns that return exact position information for the high-temperature-resistant optical encoder disc and does not lose the position even if power is lost.
• Single-Track Encoder Disc: Basic design for application of up to low-resolution, single-direction motion detection
• MultiTrack Encoder Disc: Greater than 1 concentric track provides higher resolution and yields greater precision, accuracy, and reliability, solving precise control needs.
• Specialized Application Disc: Optical encoder disc for precision instruments and harsh environments.

High-Temperature Resistant Optical Encoder Disc Applications

High temperatures can sidetrack standard components, necessitating the need for a high-temperature-resistant optical encoder disc that maintains accuracy and signal stability. Using heat-stable materials and patterned discs with very accurate composition, these discs will perform consistently over continuous thermal cycling.

• Industrial Motors and Drives: Provides dependable position feedback in high-speed ac/dc motor applications that produce continuous heat.
• Aerospace Actuation Systems: Maintain a high level of integrity in the signal under extreme (high and low) temperature conditions for aircraft/space mechanisms.
• Metal & Glass Processing Equipment: Provides reliable motion feedback in furnaces, rolling lines, and hot forming systems.
• Automotive Testing & Powertrain: Measures the optical encoder disc exactly when any rotation needs to be measured during either thermal load or endurance testing.
• Energy and Turbine Monitoring System: Provides reliable motion data in turbine and generator applications in the high thermal environment.

Advantages of Optical Encoder Discs

Optical encoder discs are popular due to their reliability in providing motion feedback with high accuracy. This non-contact sensing approach guarantees the same performance for high-accuracy applications, while enabling long-term stability of the entire powered system.

• High measurement accuracy: Optical encoder discs provide position and speed feedback in high-end motion control applications.
• Non-contact working: Balances have no need to hit, are lighter to wear, and have a longer life.
• High-speed performance: Good for stable output even under high-speed optical signal detection.
• High repeatability: Reproducible results are obtained within one movement cycle for grooves on repeating discs.
• Wide application flexibility: In optical encoder disc manufacturing, robotics, and optical encoder discs for precision instruments.

Choosing a High-Accuracy Optical Encoder Disc Supplier

If the signal is accurate and the system is reliable, it is very determined by the quality of the disc, so it’s crucial to select a good supplier. This, together with a reliable, high-accuracy optical encoder disc supplier, guarantees performance and tight tolerances as well as long-term stability for demanding applications.

• Proven Manufacturing Expertise: Demonstrable precision etching/photolithography to ensure optical encoded disc pattern integrity.

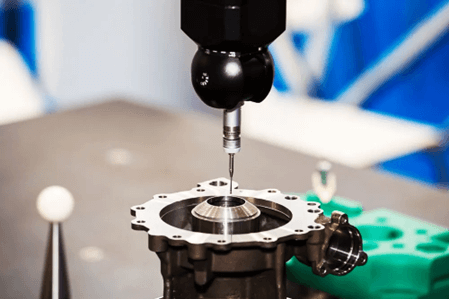

• Strict Quality Control: The inspection before and after the machining process, as well as in-process measurement, allows you to achieve high-accuracy results batch by batch.
• Material and Design Flexibility: With features such as a provisioned optical encoder disc for a high-temperature-resistant optical encoder disc and design flexibilities, these offer ultimate value over the long term.
• Thermal and Environmental Testing: Performance verification for use in typical and high-temperature encoder disc applications minimizes failure risk.
• Reliable Technical Support: Engineering support and responsiveness that helps to advance the integrations and projects faster

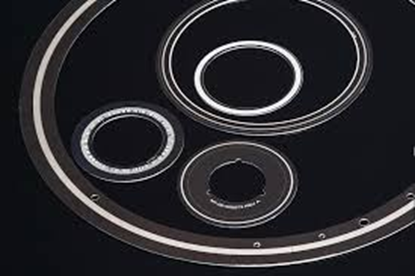

Why Choose TMNetch for Optical Encoder Disc Solutions

TMNetch full motion has to be accurate; it needs to be tough, and above all, when it matters the most. TMNetch serves high-temperature-resistant optical encoder disc applications in various industries with its strong micro-fabrication technology and high-quality control background.

• TMNetch develops high-temperature-resistant optical encoder discs and repeatable disc patterns.
• Advanced manufacturing processes enable tight tolerances for improving signal performance and reliability.
• Material flexibility allows for solutions in standard and high-temperature operating conditions.
• Apt inspection and extensive testing ensure a similar quality level from prototype to production.
• Custom design support helps match optical encoder disc specifications to exact application needs.

FAQs

1. What is an optical encoder disc used for in motion control systems?

An optical encoder disc is simply a mechanical convention for speed and position feedback; the optical encoder disc for precision instruments converts mechanical movement into digital signals. It provides stable accuracy and repeatability.

2. Why is material choice important for an optical encoder disc?

The selection of materials has an impact on the durability and thermal stability. A  high-temperature-resistant optical encoder disc shall resist the heat while the optical encoder disc is used to produce a stable signal under harsh conditions.

3. How do I choose the right optical encoder disc for my application?

The optical encoder disc, which is suitable for use as the optical encoder disk, will depend on resolution, environment, and accuracy requirements. For delicate systems, you may need an encoder disk for a high-temp optically encoded disk.

Conclusion

An optical encoder disc is such a component that comes at the core of many modern motion control systems when accuracy and reliability are of the essence. Everything from design specs to what materials we choose, these all impact signal quality and system performance. The correct disc provides stable feedback in high-accuracy instruments and in hostile industrial environments. TMNetch’s solutions, backed by tried-and-true production and quality standards, offer reliable long-term accuracy and operational stability. A precise optical encoder disc working principle explained will pay dividends in enhancing efficiency, minimizing error and repetition, and securing reliable outcomes over a broad array of precise high-resolution applications.
