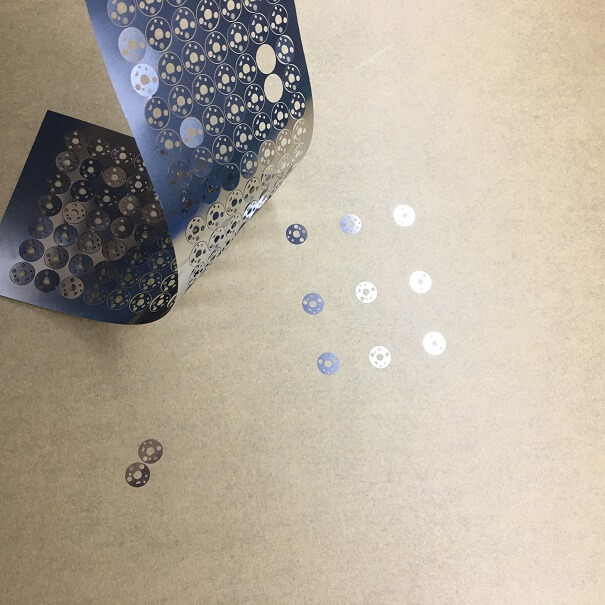

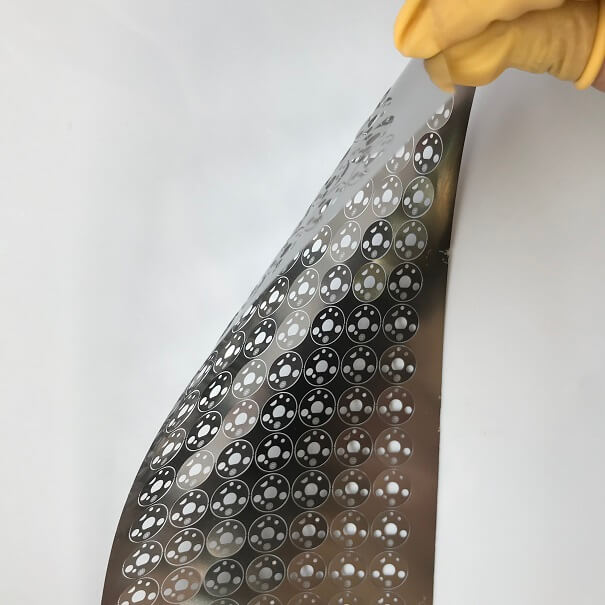

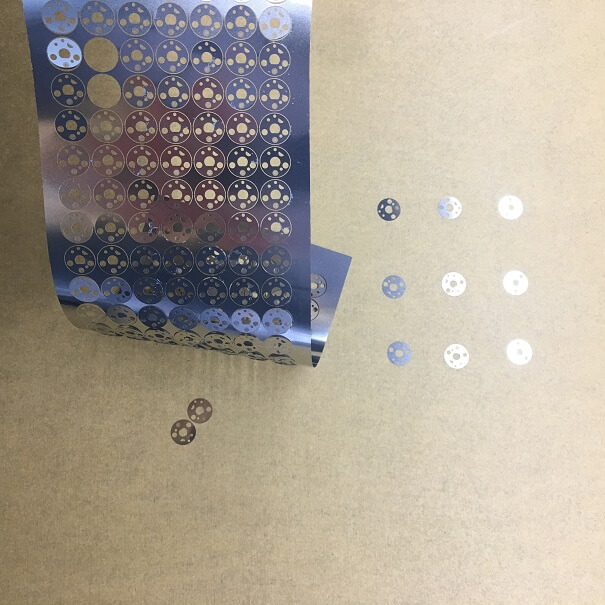

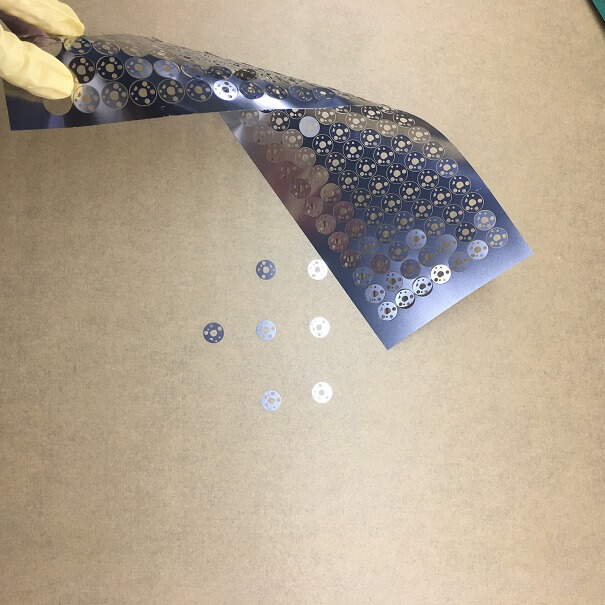

Ultra-Thin Etched Steel Sheets by TMN Metal Parts Fabrications

When high precision meets minimal thickness, ultra-thin etched steel sheets become the material of choice for today’s most demanding industries. At TMN Metal Parts Fabrications, we specialize in fabricating ultra-thin etched steel sheets that deliver extreme accuracy, durability, and performance — even in the most intricate designs.

Whether used in electronics, medical devices, aerospace, or industrial equipment, TMN's etched steel solutions are engineered for functionality without compromise.

What Are Ultra-Thin Etched Steel Sheets?

Ultra-thin etched steel sheets are precision-engineered metal sheets, typically ranging from 0.03 mm to 0.5 mm in thickness, that undergo chemical or laser etching to produce detailed patterns, cutouts, or textures. These sheets are ideal for micro-components and applications that require:

  • Lightweight yet strong materials

  • Micro-scale patterns or holes

  • Tight tolerances and high repeatability

  • Non-burred, clean edges

Unlike traditional machining or punching, the etching process removes metal without stress, distortion, or deformation — making it perfect for ultra-thin steel materials.

Why Choose TMN for Ultra-Thin Etched Steel Sheets?

TMN Metal Parts Fabrications is a trusted name in custom metal part fabrication, offering specialized etching services tailored to ultra-thin steel materials. Here’s why TMN is the preferred partner for businesses that demand high performance and precision:

1. Expertise in Ultra-Thin Materials

Working with ultra-thin steel requires expert handling and advanced processing. TMN has extensive experience etching materials as thin as 30 microns (0.03 mm) with zero warping or breakage.

2. High-Precision Etching Technology

Using advanced photochemical etching systems, we deliver micro-precision features, ultra-fine lines, and complex geometries without compromising material integrity. We also offer laser etching for surface marking or engraving.

3. Full Customization

We fabricate each ultra-thin etched steel sheet to your exact specifications — including thickness, material grade, cutout pattern, size, and finish. No matter the complexity, we ensure accuracy from design to delivery.

4. Cleanroom-Level Quality Control

Precision components need precision inspection. TMN performs rigorous quality checks, including dimensional validation, surface inspection, and microscopic analysis to ensure your parts meet the highest industry standards.

Applications of Ultra-Thin Etched Steel Sheets

Ultra-thin etched steel sheets are widely used in high-precision industries where weight, space, and accuracy are critical. Common applications include:

Electronics

  • EMI/RFI shielding

  • Flexible circuits

  • Lead frames

  • Battery components

Medical Devices

  • Surgical instruments

  • Diagnostic tools

  • Microfiltration screens

  • Implantable device components

Aerospace & Defense

  • Lightweight sensor parts

  • Fuel system filters

  • Airflow control panels

Automotive

  • Dashboard interface layers

  • Interior decorative inlays

  • Engine ventilation components

Industrial & Scientific

  • Microfluidic systems

  • Fine mesh filters and screens

  • Thermal dissipation layers

TMN delivers ultra-thin etched steel sheets that meet the performance and safety requirements of these critical applications.

Materials Available

TMN offers a wide range of steel types for ultra-thin etching, including:

  • Stainless Steel (304, 316, 301) – Ideal for corrosion resistance and strength

  • Spring Steel – Offers excellent flexibility and resilience

  • High-Carbon Steel – Used for applications needing wear resistance

  • Low-Carbon/Mild Steel – A cost-effective option for structural micro-parts

  • Nickel Alloys – Suitable for high-heat and chemical environments

Our technical team will help you choose the best material for your specific application and thickness requirements.

Etching Capabilities

At TMN Metal Parts Fabrications, we offer both chemical etching and laser etching techniques:

Chemical Etching (Photochemical Machining)

This technique involves applying a photoresist to the sheet, exposing the pattern with UV light, and then immersing it in a chemical etchant. Key benefits include:

  • Micron-level precision

  • Burr-free, distortion-free edges

  • Complex geometries without tooling wear

  • Ideal for thin-gauge materials (0.03 mm–0.5 mm)

Laser Etching / Engraving

Laser systems allow us to add logos, labels, part numbers, and traceability features onto thin metal surfaces. Laser marking is permanent and clean, with minimal thermal impact on ultra-thin materials.

Customization Options

Every project at TMN is unique. We offer a wide range of customization options for your ultra-thin etched steel sheet:

  • Sheet Thickness: From 0.03 mm to 0.5 mm

  • Sheet Size: Standard or custom dimensions based on your application

  • Pattern Design: Custom cutouts, grids, perforations, logos, or complex geometries

  • Surface Finish: Matte, brushed, polished, or passivated

  • Color Fill: For visual branding or identification

  • Serialization: Marking for batch tracking or part ID

Simply send us your technical drawings or discuss your design with our team — we’ll bring it to life with unmatched precision.

Advantages of Ultra-Thin Etched Steel Sheets by TMN

1. High Precision, Minimal Tolerance

Etching allows us to achieve extremely tight tolerances (±0.01 mm or better), even on the thinnest sheets.

2. No Mechanical Stress or Warping

Chemical etching is a non-contact process that preserves the mechanical properties of thin steel without causing distortion.

3. Scalability from Prototype to Production

Whether you need a one-off prototype or high-volume runs, our etching process is fast, cost-effective, and repeatable.

4. Environmentally Responsible

Our processes generate minimal waste, and all metals are recycled in compliance with environmental standards.

Industries We Serve

TMN’s ultra-thin etched steel solutions are trusted by global leaders in:

  • Consumer Electronics

  • Medical Device Manufacturing

  • Automotive Engineering

  • Aerospace and Aviation

  • Industrial Automation

  • Telecommunications

  • Instrumentation & Control Systems

We understand the standards and certifications required by these industries and ensure all products meet or exceed those expectations.

Quality Assurance

Quality is at the core of everything we do. TMN’s quality assurance team performs detailed inspections at every step, including:

  • Material verification

  • Dimensional accuracy checks

  • Surface integrity testing

  • Cleanroom packaging (if required)

Our goal is to deliver etched ultra-thin steel sheets that perform flawlessly in their intended environment.

Request a Free Quote Today

Are you looking for a reliable supplier of ultra-thin etched steel sheets with the precision and service to match? TMN Metal Parts Fabrications is ready to help. From concept to completion, we provide expert guidance, fast lead times, and custom solutions that meet your technical demands.

Contact us today for a free consultation and quote. Let’s turn your most detailed designs into reality — with the thinness, strength, and precision only TMN can deliver.
