The Role of Custom Made Shims in Industrial Accuracy

The precision of alignments is very important in ensuring the working life and reliability of industrial machinery. The smallest space error may lead to vibration, interference, and tolerance. These custom made shims are for use when you need accurate alignment of the parts assemblies. From high-quality precision laser cut custom made shims, we produce the custom shims you need that keep your business at the forefront of any industry. In this guide, we’ll explain how custom made shims for industrial machinery ensure accuracy, stability and ultimately operational sustainability.

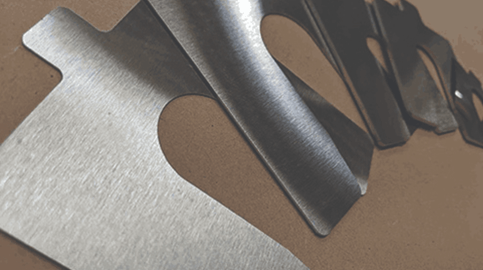

What Are Custom Made Shims?

Custom made shims are precision-fabricated spacers that close the gap, align, and level mechanical assemblies. They are machined to the exact thickness, shape, and material for cutting in your operation. Custom precision shims are completely different than standard shims and provide exact load distribution in addition to close tolerance capabilities. High-precision shims are generally used by specialists and professionals for heavy machinery. They assist with feeding, transferring, and shaking out materials, and help prevent jamming and assure a consistent material flow. Keys can interrupt the impact force that is relayed by arms, too.

Why Custom-Made Shims Are Essential for Accurate Alignment

A well-aligned system is the basis for its sound mechanical performance. That could also lead to vibration, unbalanced loading, and early component death from any minor spacing discrepancies. Custom-made shims provide precise spacing and tolerance control when standard shims just won’t do. They allow engineers to design successful assemblies without redesign of components, maintain stability, and time-honored performance in industrial applications.

Key Reasons Custom-Made Shims Matter

1. Precise Alignment Control: Space to fill out of tolerance gaps and level out dimensions can be addressed with shims constructed from many materials, yet aligned so the parts are perfectly coupled with no offsets under load.
2. Uniform Load Distribution: Custom-made shims for exact uniform load distribution across the whole bearing, shaft, and installation area to avoid unnecessary stress on bearings, shafts, and housing.
3. Reduced Vibration and Noise: Custom shimming means the alignment is perfect, making for less vibration and thus noise, and that makes your system more stable.
4. Improved Equipment Lifespan: By reducing misalignment, moving parts don’t wear out as soon, and your pieces of machinery and structures will last longer.
5. Support for Heavy Loads: These engineered shims for heavy machinery aren’t going to buckle under the weight of a machine that bears heavier loads and is used frequently in difficult conditions
6. Adaptability to Complex Assemblies: Irregular shapes, tight clearances and multi-point alignment applications can be catered for with custom-made shims.
7. Faster Installation and Adjustment: These pre-engineered shim products minimize on-site trial and error, saving installation and maintenance time.
8. Compatibility with Precision Manufacturing: Our in-house laser-cut shims eliminate this for a perfect fit. All over something the size of a pencil eraser.
9. Enhanced Safety and Reliability: From this perspective, accurate alignment protects against sudden mechanical breakdown, enhancing operational safety in industrial plants.
10. Cost Savings Over Time: Custom-fabricated shims provide a long-term cost advantage by minimizing downtimes, maintenance intervals, and part exchanges.

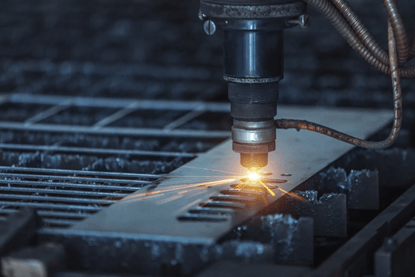

The Engineering Process Behind Custom-Made Shims

The precision laser cut custom made shims are made following an exact engineering process to ensure quality, uniformity, and the proper level of functionality. From prototyping and validation through production and finally inspection, even the most stringent tolerance requirements of size or application requirements are met, especially in precision-driven industrial environments.

Key Engineering Steps

• Requirement Analysis & Measurement: Application-specific clearances, loading, and tolerances are defined before design begins.
• Material Selection: Metals are selected in terms of strength, corrosion resistanc,e and service conditions.
• Accuracy Cutting & Forming: Precision laser-cut custom-made shims to your exact specifications with no tooling or set-up charges, as well as a variety of materials.
• Thickness & Tolerance Verification: All plates are stamped for thickness and series that ensures product consistency and guarantees you know what you’re getting right out of the box.
• Final Quality Assurance: Hand-fit and checked to be smooth and flat for accuracy when Custom-made shims.

Material Selection & Performance Factors in Custom-Made Shims

Material selection has a decided impact on the strength, durability, and alignment accuracy of custom made shims. The chosen metal is important. It must perform well under load, during fluctuations in temperature, and over the total period of operation, significantly so with precision applications.

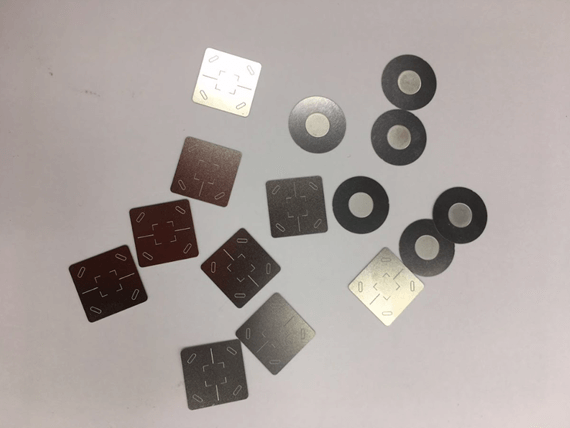

• Stainless Steel: Provides the combination of high strength, corrosion resistance, and dimensional stability commonly used in custom shims.
• Carbon Steel: Good load resistance for rigid alignment on industrial process equipment.
• Brass & Copper: Recommended for applications demanding electrical conductivity and low friction, but application restrictions make it an improper choice in some high-speed/dry start-up
• Aluminium: lightweight and corrosion-resistant, for low load/ precision positioning of lightweight, less demanding tooling.
• Laser-Cut Consistency: Precision laser cut custom made shims are consistently the same size and allow for unparalleled edge control.

Choosing the Right Custom-Made Shims

Selecting the proper shim solution is essential to the precision and long life of your machinery. For custom-made shims, the right shims translate to accurate spacing and load bearing, along with reliable performance under rugged industrial conditions.

Key Selection Factors

• Application Requirements: Select custom shims on the basis of load, tolerance to misalignment of the components, and operating conditions.
• Material Compatibility: The selected material of the shim should meet with the inflow of temperature, corrosive environment and mechanical stress.
• Manufacturing Precision: Choose precision laser cut custom made shims for your most critical applications that require minimum tolerances and clean cuts.
• Dimensional Accuracy: made shims manufacturer to supply you with only the best.
• Supplier Expertise: Utilize knowledgeable custom-made shims manufacturers to ensure quality and uniformity.

Why TMNetch Is a Trusted Source for Custom-Made Shims

TMNetch provides precision shims for all of the industrial requirements. With the latest technology manufacturing and control system, TMNetch can produce custom-fit shims of nearly any custom or standard alignment tolerance quickly on a same-day basis for your application.

Key Reasons to Choose TMNetch

• Precision Manufacturing Expertise: TMNetch produces precision laser cut custom made shims products to high standards of accuracy and material gauging.
• Application-Focused Design: Each custom shims designed to fit machinery adjusting and alignment requirements.
• Advanced Production Technology: Industry’s first cutting and inspection process standardization, creates superior quality that can’t be shattered.
• Strict Quality Control: From precision laser cut custom shims to the most intricate part, every product is rigorously monitored for its flatness, balance and stability.
• Industry-Proven Reliability: TMNetch supplies its own shims to a diverse range of industries and heavy-equipment applications across the globe.

FAQs

1. What are custom-made shims used for in industrial applications?

Shims are predefined components that allow gearboxes, pumps, and other equipment pieces to be properly aligned and stabilized. Shims, which will be produced for industrial equipment to a specific design, are likely to need some degree of close thickness tolerance.

2. Why are precision laser cut custom made shims preferred?

Made from high-quality, non-magnetic stainless steel, these shims offer exceptionally tight tolerances with a smooth surface. These characteristics make the custom made shims good for alignment work within the custom made shims for industrial machinery and heavy-duty machines.

3. How do custom made shims improve machinery performance?

Custom shims minimize vibration and misalignment, allowing for longer equipment life. Custom shims manufactured by precision laser cutting improve reliability, and custom made shims for machinery can help prolong the life and improve its efficiency.

Conclusion

Exact alignment is crucial with regard to efficient mechanical operation, and precision laser cut custom made shims provide the exact spacing required. Custom-made for precise thickness and application requirements, these help minimize vibration, alleviate uneven skid loads, and promote longer life in the equipment. Whether you need a laser-cut shim to stabilize your production process or a shim washer for an extreme temperature application, you will find the right gasket and fastener for your particular specifications. With quality designs and superior manufacturers, industries can enjoy stable operation, reduced maintenance costs, and long-term efficiency of vital machinery systems.
