Acid etching stainless steel is a process of engraving that produces markings, reliefs similar to logos, and modern art on common metal materials. It is well-established in the automotive, aerospace, and electronics industries. The acid etching stainless steel process can be used to achieve complex shapes with fine details such as logos and lettering, and it does not harm the metal’s heat-treatable properties- making it well-suited for highly durable industrial applications. Whether it is for branding, identification, or for industry purposes, etching with an acid is still fundamental in most modern manufacturing.
Understanding the Acid Etching Stainless Steel Process
The acid etching stainless steel process can be used for long, deep etches as well as shallow and small areas of the metal surface. This procedure is recognized for being highly accurate and consistent.
Step 1: Clean and Prepare the Surface
It starts with cleaning the metal surface as much as possible. Solvents or alkaline cleaners are used to take away contaminants such as grease, oil, or oxidation. Clean surfaces ensure uniform etching. The cleaning for each acid etching stainless steel process is strictly performed according to general use. TMNetch always carries out a pre-cleaning process with high standards in our mass production.
Step 2: Applying the Masking or Photoresist Layer
A photoresist or chemical mask sensitive to light is deposited to define areas of non-etch. This layer serves to mask some of the metal during etching. The workers at a photochemical etching stainless steel component manufacturer, the machine for coating at the factory ensures the spread out surface is equal. This is critical in obtaining maximum details and accurate acid etching stainless steel process results.
Step 3: Exposure to UV and Developing
The patterned film directs ultraviolet (UV) light at the masked metal. Exposed portions solidify and unexposed portions stay soft, washed away with a developer. These define sharp openings for the chemical etchant to attack. TMNetch utilizes an automatic exposure system and ensures the sophistication and consistency of each acid etching stainless steel for industrial use design.
Step 4: Chemical Etching Reaction
This step is the essence of the entire acid etching stainless steel process. The photosensitive metal sheet is then relieved from the unrestrained photoresist by soaking it in a chemical bath, typically containing ferric chloride or nitric acid. The acid affects only unprotected surfaces, causing the metal to dissolve slowly. Parameters such as temperature, acid concentration, and soaking time are carefully controlled. On site our master technicians modify settings for the metal and desired depth, guaranteeing perfection on all acid etching stainless steel services.
Step 5: Neutralize and Rinse well
The part is then rinsed with clean water to remove the chemical residues after etching for a desired depth. It is then neutralized using weak alkaline solutions to prevent any further reaction. Neutralization is an essential safety process in acid etching stainless steel, reducing the potential for corrosion and maintaining surface gloss throughout the life of industrial materials.
Step 6: Stripping the Photoresist Layer
Then, the hard photoresist is dissolved with a mild solvent to expose the desired etched pattern. It is also this level at which manufacturers are looking for the quality of patterning and surface texture. TMNetch photochemical etching stainless steel component manufacturer to help ensure that all lines are kept clean and all edges smooth for both decorative and functional purposes.
Step 7: Final Finishing and Quality Check
Following etching, the stainless steel components can be polished, brushed, or plated as necessary for customer specification. The TMNetch team conducts various inspection steps to ensure etch uniformity, accuracy, as well as total finish. The acid etching stainless steel for industrial use is subjected to dimensional tolerances of tests, and inspections prior to dispatch. This level of quality control is why customers keep coming back to us for perfected parts.
With these detailed steps, the acid etching stainless steel process ensures superior accuracy, consistency, and adaptability for contemporary industrial uses.
Advantages Of Acid Etching Stainless Steel for Industrial Use
There are various benefits of acid etching stainless steel for industrial use, and that’s the reason for its being so popular in a number of different industries as one of the most superior precision technologies across all sectors:
- No Mechanical Stress: Acid etching stainless steel process does not cause mechanical stress or deformation, no burrs, ideal for Sensitive industrial use applications.
- High Accuracy and Consistency: Being perfectly suitable for fine micro-patterns and thin metal sheets, acid etching stainless steel service is capable of providing precise results and repeatability performance to complex parts.
- Application: It can be used with many grades and thicknesses of stainless steel, ideal for acid etching stainless steel for industrial uses, including in the automotive, aerospace, and electronics industries.
- Cheap Production: Low tooling costs and quick lead times mean acid etching stainless steel service is a low-cost option for prototypes or mass production.
- Environmentally Friendly: Because of the controlled use of chemicals and recycling, the acid etching stainless steel process is an environmentally friendly option for manufacturers.
The importance of photochemical etching stainless steel component manufacturers like TMNetch for the fabrication of fine filters, decorative panels, and electronics are same as a necessity in the various industries.

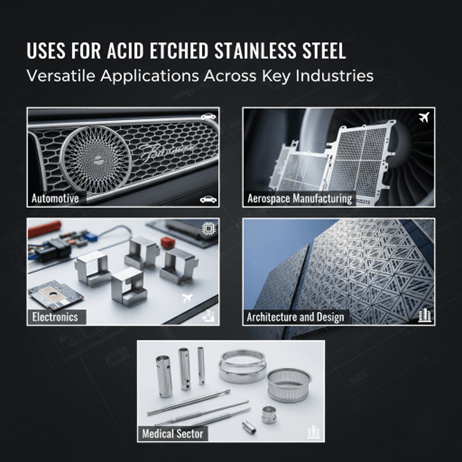

Uses for Acid Etched Stainless Steel
Acid etching stainless steel for industrial use has many applications across a range of key industries that require precision engineered components, details, and accuracy in material:
- Automotive: Used in a stainless steel acid etching service to make emblems, trims, and gaskets that give the stability of strength as well as aesthetically pleasing designs.
- Aerospace Manufacturing: Acid etching stainless steel process can produce high precision components and lightweight parts for industries such as aerospace, aviation, and electronics.
- Electronics: Photochemical etching stainless steel component manufacturer uses this method to make EMI shielding, circuit components & micro-connectors, orifices in base plates, and an etching grid.
- Architecture and Design: Acid etching stainless steel for industrial use permits the development of decorative wall panels, signs, as well as other custom metal works.
- Medical Sector: Acid etching stainless steel is used in the manufacturing of TMNetch’s surgical instruments and medical devices to deliver a smooth, anti-corrosive finish.
Each photochemical etching stainless steel component manufacturer would work from process characteristics to material grade, designed depth, and industrial standards in ensuring precise results among industry clients.
Why Choose TMNetch for Acid Etching Stainless Steel Service
Optimal results, fast, reliable. We have now succeeded in offering a full set of end to end acid etching stainless steel services with quality guarantee, and more cost-efficient solutions. TMNetch is a one-stop shop. We use cutting-edge equipment to ensure that their acid etching stainless steel work has no granularity, burrs, and good quality.
Key Features of TMNetch Service:
- ISO-certified chemical etching facility.
- Capable of cutting foils as thin as stainless steel sheets as thick as.
- It can be designed to customize for industrial and decorative usage.
- Fast turnaround with bulk order support available.
When it comes to reliable photochemical etching stainless steel component manufacturers for the industries, all of them trust TMNetch, which never compromises on quality, safety, and improvement.
FAQs
Q1. What are chemicals used for polishing or acid etching stainless steel?
Typical acids would be ferric chloride and nitric acid. These solutions dissolve metal in the exposed areas of stainless steel and thus promote selective etching, without touching the protected sections. TMNetch’s Formulations are industry standard for reliable results.
Q2. How deep will acid etching stainless steel options go?
Etch depth ranges from a few microns to a few hundred microns, depending on the thickness of the material, the acid concentration, and the exposure time. TMNetchs stainless steel acid etching provides a precise, chemical etched depth of 10-30um and is ideal for detail work on your next project.
Q3. What are the benefits of stainless steel acid etching compared with laser cutting?
Unlike laser cutting, which can distort the shape of parts due to heat, stainless steel acid etching service delivers a clean and burr-free finish to metal parts with no minimum order. It is suitable for high-precision industrial use parts.
Summary
Acid etching stainless steel is important in the manufacture of precision components, as it performs simultaneously with great accuracy and aesthetically for many critical manufacturing processes. As a source of acid etching stainless steel service to the world’s industries, TMNetch is a name you can rely on for quality etched sheet metal products. Industrial Filters, Brand Panels – this makes for a premium quality and consistent product.
