The selection of mesh filter size is essential to carry out a precision filtration process in industrial applications. TMNetch is a reliable metal etching and filtration company that also manufactures filters with various mesh openings. Finding your mesh filter size chart, mesh filter size available commercially, and custom cut mesh filter size is clearly defined for efficient filtration within your system. The following is a guide to selecting the right mesh filter size for industrial uses.
Understanding Mesh Filter Size
The term mesh filter size is the number of openings per inch in a screen. The smaller the number, the larger the particle it filters, and higher numbers provide finer filtration. The manufacturers, such as TMNetch, employ precision chemical etching and metal finishing techniques to obtain exact mesh sizes for different industries.
How Mesh Filter Size Is Measured
- Mesh Count: The number of openings in one inch of screen.
- Diameter: Wire thickness decides the strength and flow.
- Open Area: The opening area between wires; smaller openings filter the particles.
- Material: Stainless steel, copper, and nickel can be chosen according to the mesh filter size for industrial use.
Mesh Filter Size Chart
Here’s a basic mesh filter size chart to give you an idea of how much debris those mesh holes can hold:
| Mesh Count | Opening Size (Microns) | Common Application |
| 20 Mesh | 841 μm | Coarse filtration (gravel, large particles) |
| 60 Mesh | 250 μm | Water filtration, food processing |
| 100 Mesh | 149 μm | Paints, chemicals, resins |
| 200 Mesh | 74 μm | Pharmaceuticals, fine dust filtration |
| 400 Mesh | 37 μm | Precision electronics, semiconductors |
TMNetch guarantees that all of our mesh filter size available commercially manufactured within industrial tolerance for consistent performance.

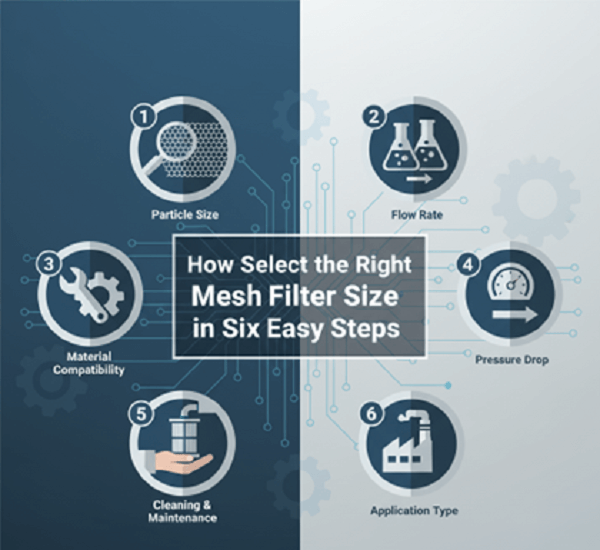

How to Select the Right Mesh Filter Size in Six Easy Steps
The process of selecting the right mesh filter size for your initiative is critical to the efficiency of your sieving activity. Utilize the described steps to get the ideal mesh size for your industrial activity, ensuring convenience
Step 1: Define the filtration goal
Identifying what requires filtering helps to determine the mesh filter size to pick. Once you’ve captured the appropriate range from the mesh filter size chart, you will be able to rate your desire for gross particles, fine dust, or micro-contaminants.
Step 2: Particle size
Based on data from your process or the smallest and largest terminal particles, choose a suitable mesh filter size for sieving. Find a match for your mesh; check the particles that can be handled from the mesh filter size chart.
Step 3: Flow rate and pressure considerations
Each mesh filter size for industrial use influences flow rate. Choosing a coarse mesh allows high flow, while a fine mesh hinders flow. Pick a mesh filter size chart with an appropriate aperture. Ensure the pressure drop resulting from the small opening can be supported by your system, as may be indicated on the mesh filter size 200.Â
Step 4: Select the right material
The environment determines the filter’s material. For example:
- Stainless Steel: For corrosive or hot temperaturesÂ
- Copper or Brass: For general mesh filter size available commercially use.Â
- Titanium: Generally on the manufacturer’s choice.
Choose materials that suit both the mesh filter size for industrial use and your operational conditions
Step 5: Consider Cleaning and Maintenance Frequency
Finer meshes clog faster. If your application involves viscous solutions, choose a mesh filter size slightly greater than that recommended for extended service use. TMNetch advises for “balancing filter accuracy with ease of maintenance.”
Step 6: Try out the Filter in Real Situations
Finalize after testing the selected air opposing mesh filter size in actual flow and temperature. Quantify system performance, pressure drop, and retention efficiency. If traditional sizes don’t work, TMNetch can help with your custom cut mesh filter sizes. They are custom-designed for a tight fit and a fresh filter feel to provide you with the maximum available filtration.
With this approach, engineers can feel secure selecting the appropriate mesh filter size with the help of TMNetch’s knowledge and technical support. With TMNetch, every mesh filter size available commercially is placed under industrial performance tolerances in order to guarantee consistency.
Factors to Consider When Selecting Mesh Filter Size
What to consider when selecting the mesh filter size:
- What you will be filtering: Determine the smallest particle size that needs to be filtered out.
- Type of Fluid: The mesh filter size chart varies for liquids and gases.
- Conditions of Use: The filtering resistance is influenced by temperature and pressure.
- Compatibility: corrosive environments require stainless steel or titanium.
- Replacement Frequency: A finer mesh will need more frequent cleaning/replacement.
Select the right mesh count from mesh filter size chart and material combination for trouble-free screen printing without worry of cross-contamination with other ink colors.
Mesh Filter Size for Industrial Use
The mesh filter size for industrial use will depend on certain aspects of the application, such as source particle size, desired composition, pressure, and flow rate of liquid. Various types of mesh are available to serve each industry’s requirements.

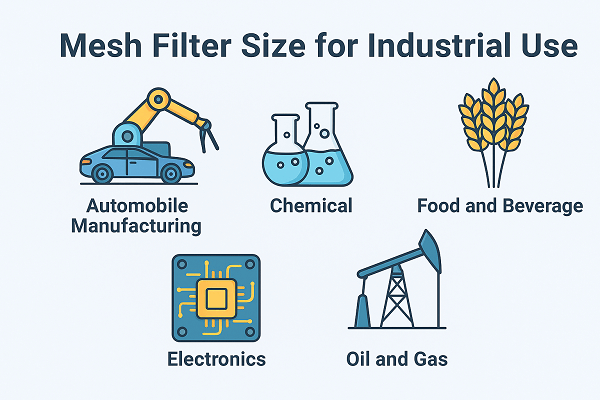

Common Industrial Applications
- Automobile Manufacturing: Applied in fluid and fuel systems, controlling contaminants, and a precise mesh filter size for industrial use screening solutions.
- Chemical: Filters raw materials to achieve a high enough level of purity for further processing and protects equipment from contamination with a mesh filter size chart as a reference for selection.
- Food and Beverage: Keeping production lines clean by removing contamination easily using a mesh filter size available commercially.
- Electronics: Vital to keep the tiny particles from contaminating by having a fine mesh filter size.
- Oil and Gas: Uses heavy duty custom cut mesh filter sizes for controlling heavier particulates, high pressured activities.
Each mesh filter size for industrial use has been selected based on direct market demand and customer feedback. This product is commonly used: Food Processing, wine making, or beer brewing applications, and household applications. Precision chemical etching by TMNetch provides evenly edged openings for consistent performance.
Pros & Cons of Different Mesh Size Filters
Pros
- Versatility: Since a wide range of mesh filter size available commercially, it meets various applications.
- Custom Cut to Your Specifications: Custom cut mesh filter size options available for any system.
- Durable and Last Longer: Metal mesh filters are more durable than fabrics or paper.
Cons
- Risk of Clogging: An extremely fine mesh filter size can lead to faster clogging in high-capacity applications.
- Higher Price: Custom-cut selections are more expensive than the inner filter.
Why Choose TMNetch for Your Mesh Filter Needs
TMNetch utilizes precise chemical etching and state-of-the-art metal finishing technology; our filters provide optimal performance. Whether you require a particular mesh filter size for industrial uses, or custom cut filters, or are eager to gain access to the latest mesh filter size chart (also kept up-to-date), TMNetch can be counted on for maintaining precision and uniformity.
Their filters are considered by manufacturers in industries such as aerospace, automotive, or electronics for high-quality mesh filter size available commercially with even openings and constant weave orders for sheer accuracy of design.
FAQs
Q1. How do mesh and micron size relate?
Mesh size means the number of openings in one inch, and micron means particle diameter size. Larger mesh filter size equals lower micron rating, finer filtration.
Q2. Is there an easy way to convert mesh filter size to microns?
Compare mesh count & micron size with the help of the mesh filter size chart. TMNetch generates comparative conversion ratios for correct industrial filtration selection.
Q3. What mesh filter size should be used for industrial applications?
The perfect mesh filter size for industrial use is determined by both particle size and flow rate. Micro-contaminant (100-400) fills on fine meshes, and larger debris (20-60) does not.
Q4. Are there commercial mesh filters in ordinary sizes?
Yes, mesh filter sizes available commercially are 20,60,100,200, and 400, etc. TMNetch guarantees these are made within industrial tolerance and finish.
Summary
Understanding the mesh filter size is of great significance for industries to have stable product quality and high product efficiency. Offering a mesh filter size chart, custom cut mesh filter size, mesh filter size for industrial use, and more options. We can provide you with the perfect filter for your application that will be accurate for the most precise sift. TMNetch, it is still your best friend for accuracy-driven filtering needs!
